Portable HF Hydrogen Fluoride Single Gas Detector, 0-10/50/100ppm Industrial HF Gas Monitor
Model: HNAG920-HF
Detection: Hydrogen Fluoride (HF) single gas detection
Detection Principle: High-precision electrochemical sensor
Detection range: 0-10ppm, 0-50ppm, 0-100ppm (customizable measuring ranges)
Product Description
HNAG920-HF Portable Hydrogen Fluoride HF Single Gas Detector Overview

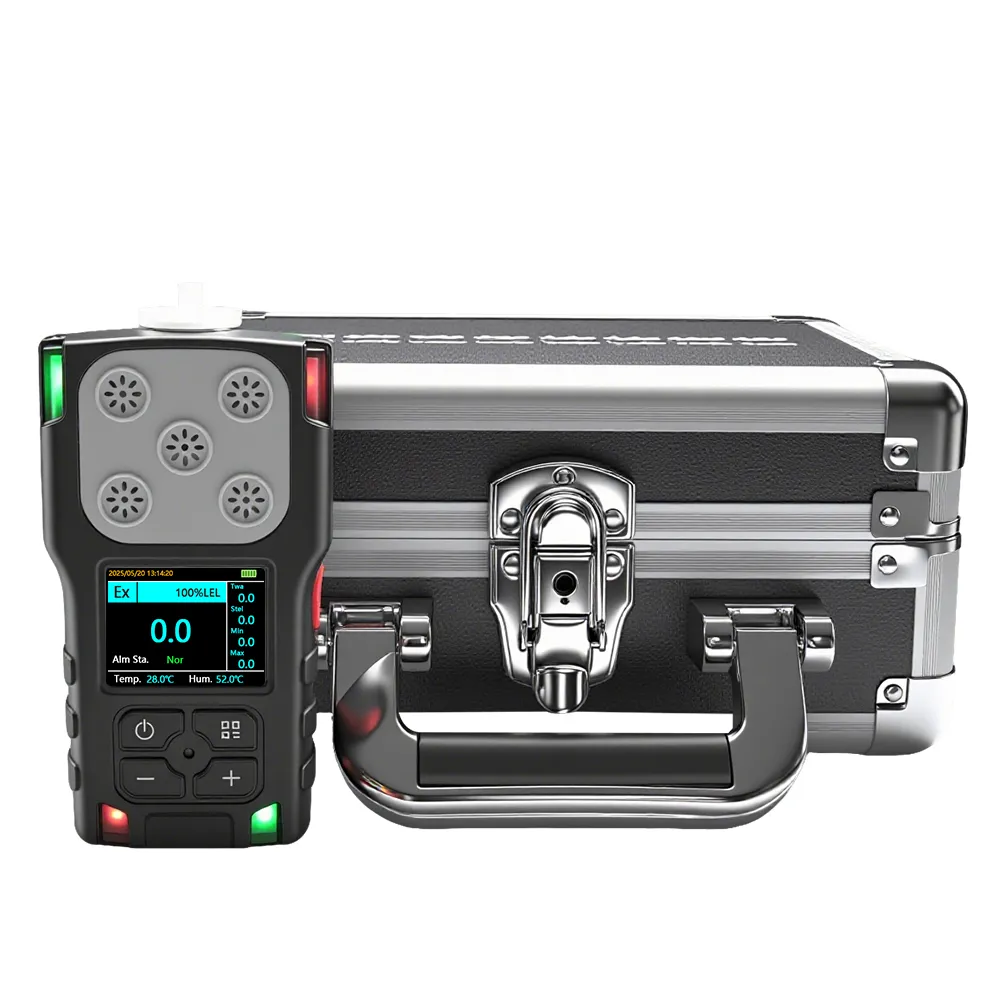

Complete HF Detector Kit & Rugged Industrial Housing
Our HNAG920-HF HF gas detector comes with a shock-resistant aluminum storage case for on-site chemical plant transport. The body adopts PC+TPU anti-drop material, with four-sided red/green LED alarm lights and built-in buzzer to deliver multi-mode visual & audible HF leakage warning signals.

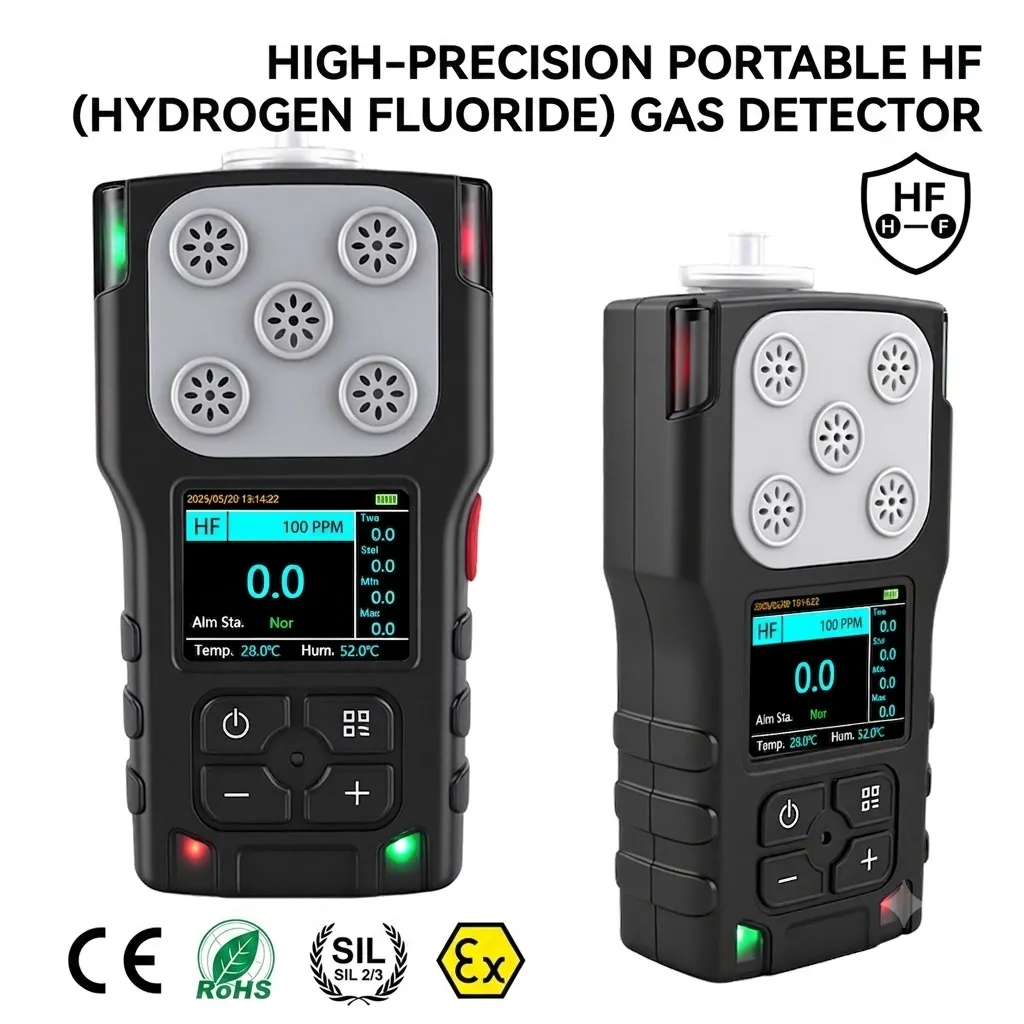

Standard HF Gas Detection Certification & Appearance
This handheld HF single gas monitor supports three standard detection ranges: 0-10ppm, 0-50ppm, 0-100ppm. It passes CE, RoHS, SIL2 safety integrity level and Ex explosion-proof certification, fully compliant with global hazardous chemical workshop safety testing standards. The rear back clip allows clipping on workwear for all-day portable HF monitoring.
Detailed Structural Introduction of HNAG920-HF HF Gas Detector

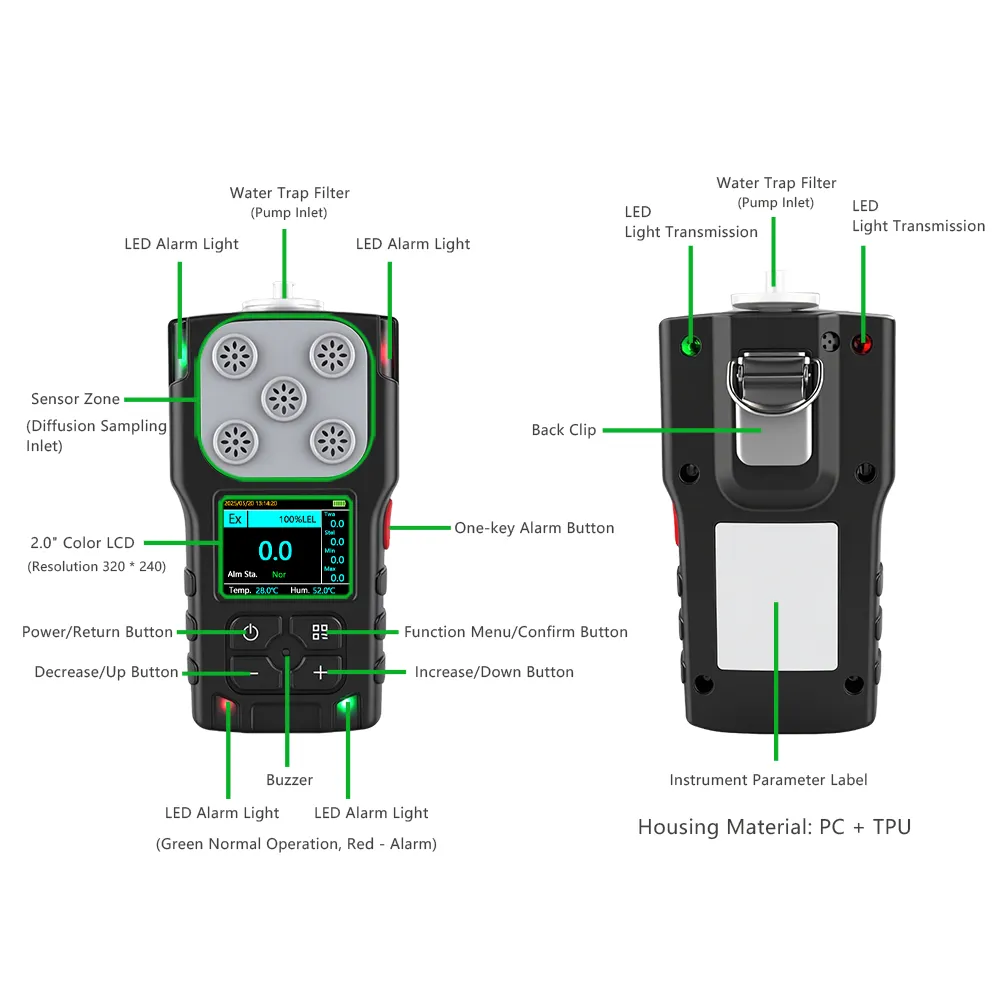

Labeled Component Diagram For HF Detector Operation
Every functional part of the HF detector is clearly designed for industrial operation: top water trap filter prevents moisture damage to sampling pump; independent physical buttons support quick parameter adjustment; red one-key emergency alarm button for instant site hazard alert. Green LED indicates normal running, red LED triggers on HF over-limit alarm.
Core Advanced Functions of Industrial HF Hydrogen Fluoride Detector
Dual Pump & Diffusion Sampling For Complex HF Detection Scenarios
Different from ordinary single diffusion gas detectors, this HF analyzer integrates pump suction + diffusion dual sampling modes. Pump mode can actively extract HF gas from confined pipelines, tanks and enclosed spaces, while diffusion mode fits open workshop real-time monitoring. It also supports drop-triggered automatic alarm for extra site safety protection.

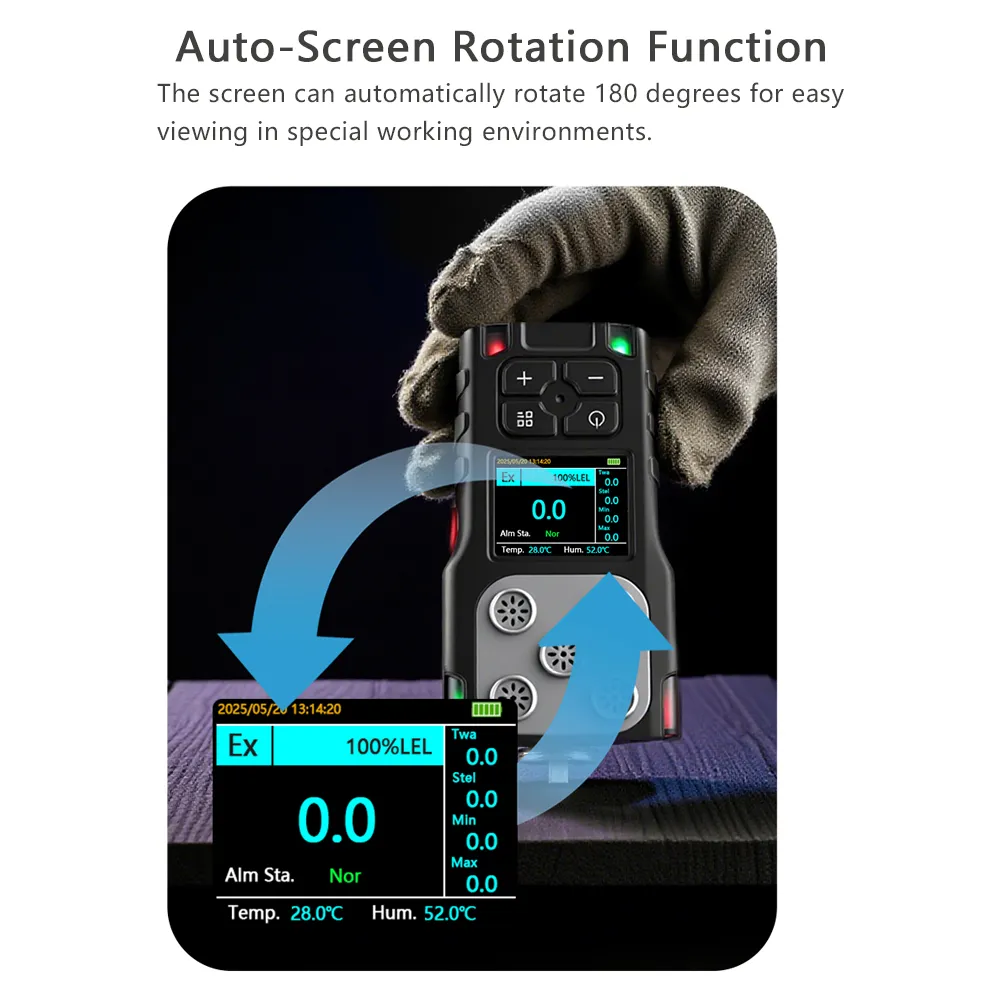

180° Auto Rotating Color LCD Screen For Easy HF Data Viewing
Equipped with a 2.0-inch 320*240 high-definition color screen with auto 180° rotation function. When holding the HF detector upside down in narrow pipelines or low-position detection work, the screen flips data automatically, ensuring clear reading of HF concentration, temperature and humidity data at all times.

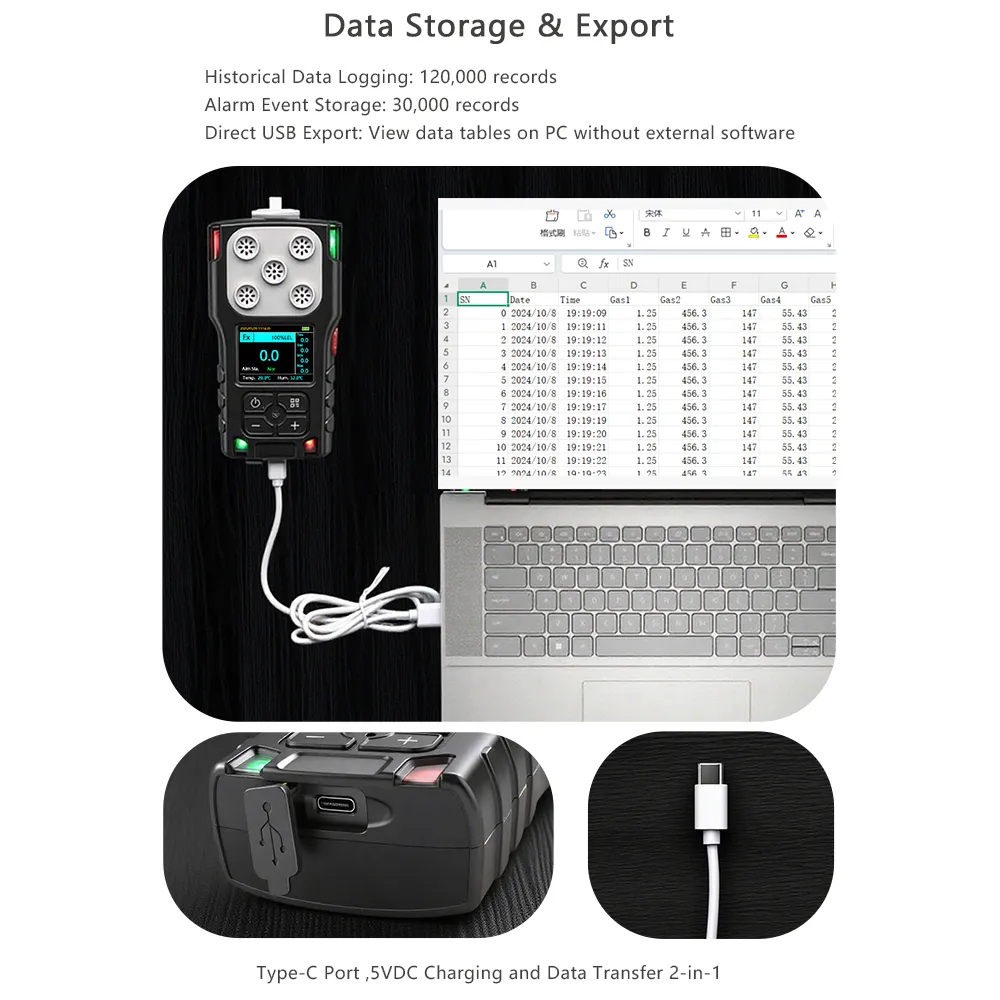

Large Capacity Data Logging & Type-C One-Click Data Export
The HNAG920-HF HF gas monitor stores up to 120,000 historical detection records and 30,000 alarm event logs. The built-in Type-C dual-purpose port supports 5VDC charging and direct USB data export. You can open HF data tables on any PC without installing extra professional analysis software, convenient for factory safety record archiving.
Multi Wireless Transmission For Remote HF Gas Data Management
This portable HF leak detector supports 4G, WiFi, Bluetooth and LORA four wireless transmission methods. Users can check real-time HF concentration data on mobile phones, print inspection reports via Bluetooth thermal printers, or upload continuous monitoring data to cloud platforms for long-distance industrial safety supervision.
Frequently Asked Questions About HNAG920-HF HF Single Gas Detector
Q1: Can I customize the HF detection measuring range?
A: Yes, we supply three standard ranges: 0-10ppm, 0-50ppm, 0-100ppm, and customized HF detection ranges are available according to your factory actual fluorine chemical working environment.
Q2: What safety certifications does this HF gas detector carry?
A: It has CE, RoHS, SIL2 safety integrity level and Ex explosion-proof certifications, which meet international safety standards for hazardous chemical workshops with HF gas hazards.
Q3: What is the maximum data storage capacity of the HF monitor?
A: The detector can save 120,000 sets of HF historical data and 30,000 alarm records, all data can be exported to computer via Type-C USB without additional software.
Q4: Is the pump sampling function suitable for confined space HF detection?
A: Absolutely. The built-in suction pump can draw gas from closed pipelines, reaction kettles and narrow confined spaces, completing HF leakage detection that pure diffusion detectors cannot finish.
Q5: Does the screen support upside-down viewing during HF inspection?
A: Yes, the auto 180° screen rotation feature automatically flips all HF concentration data, so you can clearly view readings no matter how you grip the device during low or overhead detection work.
