Portable Pump-Suction PH3 Gas Detector
-
Model: HNAG920-PH3
-
Detection: PH3 (Phosphine)
-
Detection Principle: Electrochemistry
-
Detection range: 0-20PPM, 0-100PPM, 0-2000PPM, 0-4000PPM, 0-6000PPM
Previous: No more data
Product Description
High-Precision Portable Pump-Suction PH3 Gas Detector
The HNAG920-PH3 portable gas detector is expertly engineered for the real-time, high-precision monitoring of Phosphine (PH3) gas concentrations and leaks. Utilizing an advanced electrochemical sensor, it offers multiple measurement ranges from 0-20PPM up to 0-6000PPM, perfectly accommodating diverse industrial monitoring requirements. This analyzer uniquely integrates both active pump-suction and passive diffusion sampling modes into a single robust unit, ensuring exceptionally fast response times (T90 < 10S) and reliable data stability.
Ultimate Safety Protection & Auto-Rotating Screen
Designed to withstand harsh industrial conditions, this detector boasts an Ex ib ll CT4 Gb explosion-proof rating and IP65 protection, featuring a highly durable PC+TPU overmolded housing for superior impact resistance. It is equipped with a 2.0-inch color LCD high-definition screen that features an innovative 180° auto-rotating function, allowing operators to easily read data from any wearing angle. To maximize worker safety, the device comes standard with a fall alarm and a one-key emergency alarm function, guaranteeing instant alerts during critical emergencies.
Massive Data Storage & Seamless Wireless IoT Integration
The instrument houses immense storage capabilities, capable of logging up to 120,000 historical data entries and 30,000 alarm records. Users can connect the device directly to a computer via the external Type-C USB interface to effortlessly export and view data tables without requiring any additional software. Furthermore, this device shatters traditional communication limitations by supporting multiple wireless transmission modes, including 4G, WiFi, Bluetooth, and LoRa, enabling seamless remote real-time monitoring and cloud data synchronization.

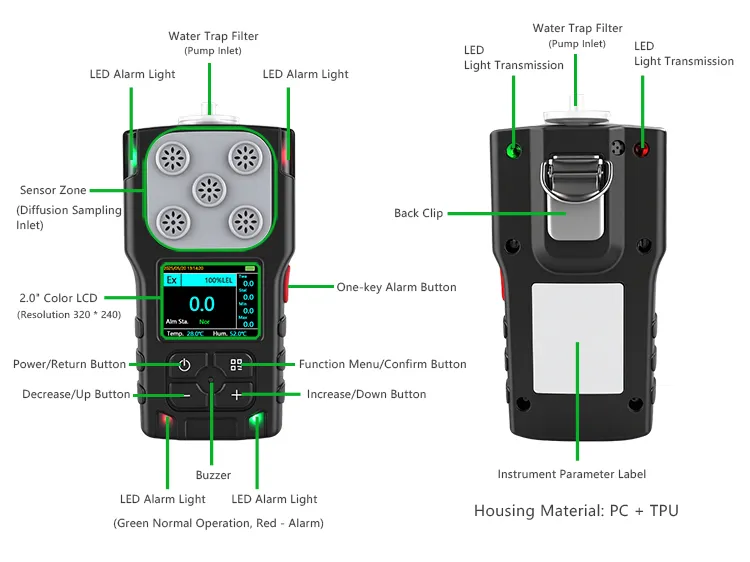

User-Friendly Interface & Intelligent Operation
The physical button layout is highly intuitive, featuring a system that supports both English and Chinese displays. Users can easily switch between gas concentration units (such as ppm and mg/m³) through simple coefficient adjustments within the menu. The top of the device is equipped with a dedicated water trap filter, effectively protecting the internal sensors from moisture and dust intrusion, which significantly extends the sensor's effective service life to 1-3 years.
Frequently Asked Questions (FAQ)
Q1: What is the difference between the pump-suction and diffusion modes on this device?
A: This device seamlessly integrates both modes. The pump-suction mode actively draws distant air into the sensor chamber via a built-in micro-pump, providing faster response times ideal for confined space testing. The diffusion mode passively detects surrounding gases, which is perfect for daily personal wear and continuous monitoring.
Q2: How long is the battery life of the detector?
A: The detector is equipped with a high-capacity 2400mAh built-in lithium battery. Charged via a modern Type-C interface, it provides extended standby and operational time to meet the demands of long industrial shifts.

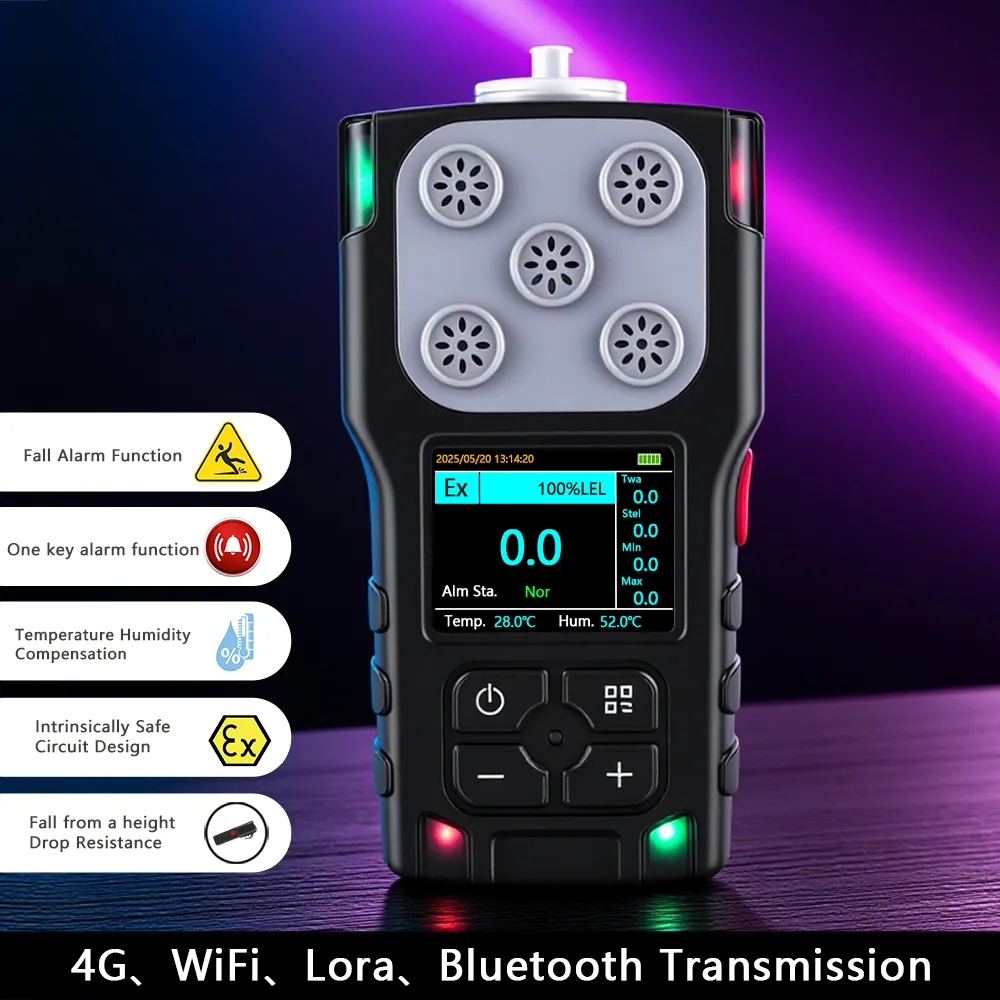

Q3: How does the Fall Alarm function work?
A: When the device detects that the wearer has experienced an accidental fall or a severe drop, it automatically triggers a high-frequency audible and visual alarm to alert nearby personnel for immediate rescue operations.

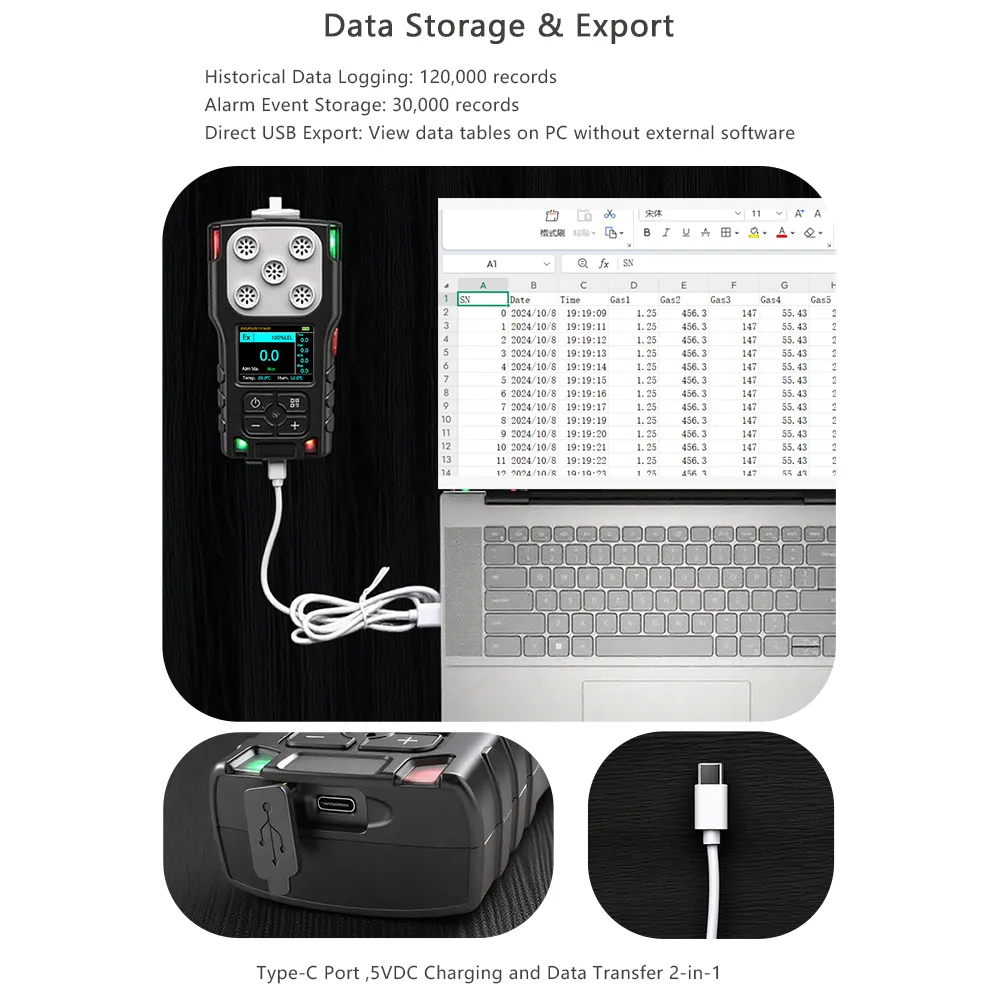

Q4: Can I view the historical gas detection data directly on my computer?
A: Yes. The device supports direct PC connection via a Type-C USB data cable. You can directly export and view all historical data and alarm records in tabular format (e.g., Excel) without downloading specialized host computer software.
Q5: What is the lifespan of the PH3 sensor, and does it require calibration?
A: Under normal operating conditions, the effective lifespan of the electrochemical sensor is 1 to 3 years. To ensure maximum measurement accuracy, the device supports primary, secondary, and tertiary calibration methods. Regular calibration maintenance is highly recommended.
