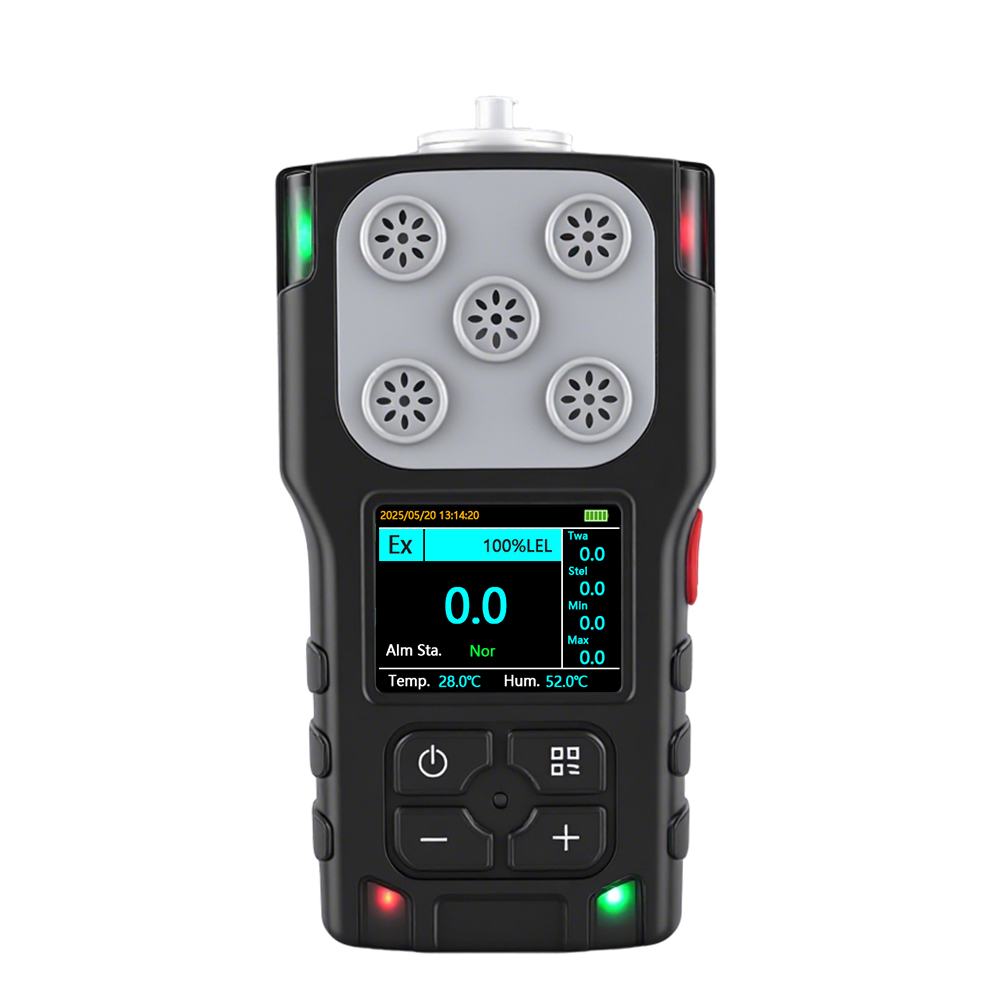

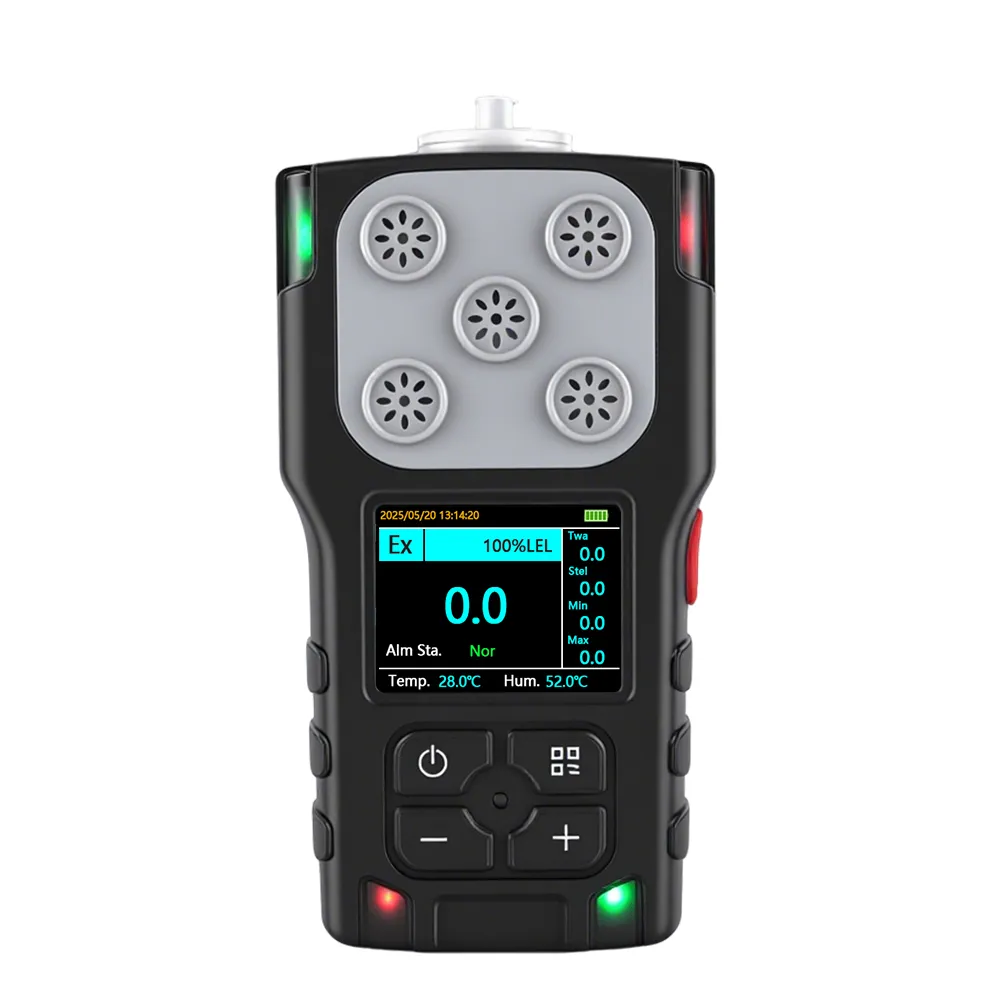

Portable H2SO4 Gas Detector Pump & Diffusion
-
Model: HNAG920-H2SO4-Z
-
Detection: H2SO4 (Sulfuric acid mist)
-
Detection Principle: Electrochemistry
-
Detection range: 0-10mg/m3; 0-20mg/m3; 0-30mg/m3
Previous: No more data
Product Description
Advanced Portable H2SO4 Gas Detector for Industrial Safety
The HNAG920-H2SO4-Z portable pumping gas detector is engineered for the real-time and accurate detection of sulfuric acid (H2SO4) concentration and potential leaks in demanding environments. Encased in a rugged PC+TPU housing with an IP65 protection grade, it provides exceptional impact resistance and durability.
Dual Sampling: Pump Suction and Diffusion Modes
This highly versatile H2SO4 gas concentration meter supports both pump suction and diffusion sampling methods within a single unit.

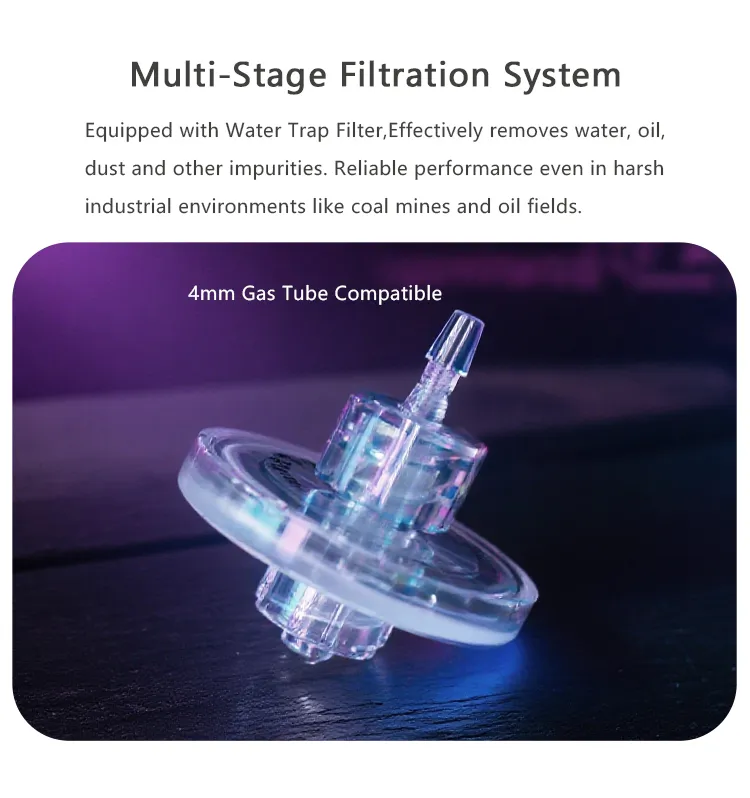

Multi-Stage Filtration System for Harsh Environments

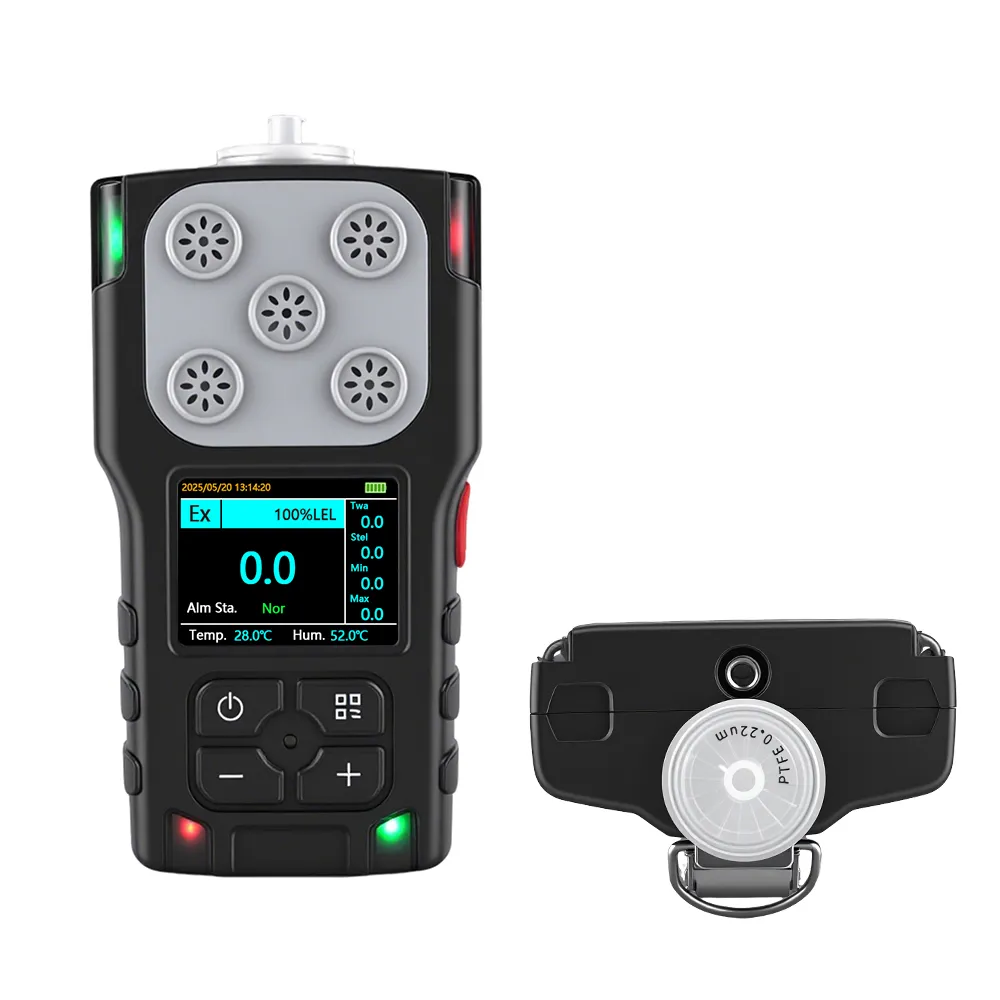

To maintain accuracy in challenging industrial settings, the device incorporates a multi-stage filtration system compatible with a 4mm gas tube. The water trap filter at the pump inlet effectively removes water, oil, dust, and other impurities.
High-Precision Electrochemical Sensor Technology
Utilizing an advanced electrochemical detection principle, this industrial gas analyzer delivers high measurement accuracy with a sampling accuracy of ±3%F.S and a fast response time (T90<10S). The 2.0-inch color LCD ensures all critical data is clearly visible, supported by a 180° auto-rotating screen.

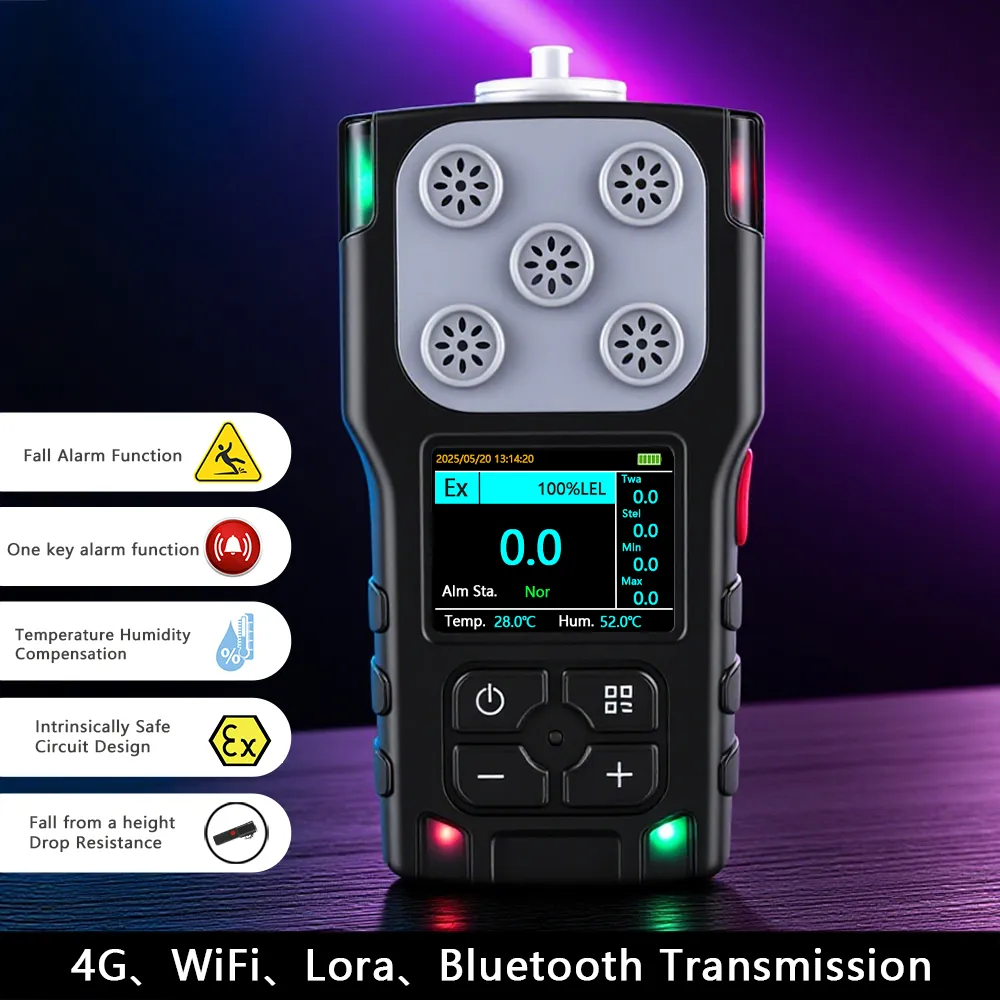

Intelligent Alarms and Wireless Transmission
Safety is prioritized with customizable high and low alarm settings, a fall alarm, and a one-touch emergency alarm function. The standard configuration includes a two-level alarm system. For seamless data integration, the detector supports 4G, WiFi, Bluetooth, and LoRa wireless transmission modes.
Comprehensive Kit and Easy Operation

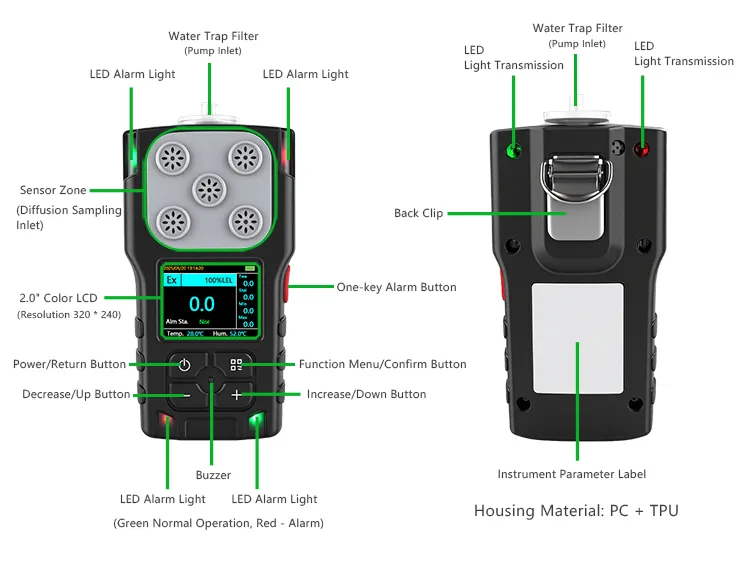

The device features built-in buttons for straightforward parameter viewing and configuration, allowing users to switch units easily through coefficient adjustment. It comes securely packaged in an aluminum carrying case for safe transport.
Frequently Asked Questions (FAQ)
Q1: What is the battery capacity and charging interface?
A1:The detector is equipped with a built-in 2400mAh lithium battery and uses a convenient Type-C charging interface.
Q2: Can the historical data be exported?
A2:Yes, the device features an external USB port, allowing for data export and deletion via a USB cable connection to a computer. It can store up to 120,000 alarm record entries.
Q3: What are the primary application scenarios for this detector?
A3:It is widely used in petroleum and petrochemical plants, chemical facilities, smelters, pharmaceutical production workshops, environmental monitoring, sewage treatment, and site safety protection.
