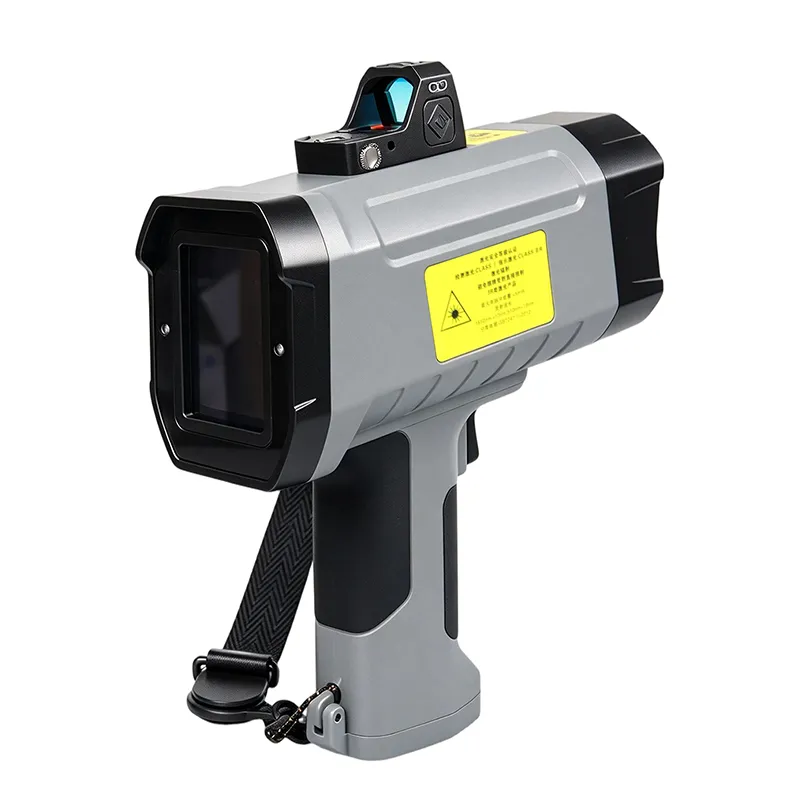

Handheld Laser Methane Telemetry Instrument CH4 Detector
-
Model：Laser Methane Telemetry Instrument
-
Detection：CH4 (Methane)
-
Detection Principle：Tunable Diode Laser Absorption Spectroscopy (TDLAS)
-
Detection range：0-100000ppm·m
Previous: No more data
Product Description
Advanced Laser Methane Telemetry Instrument for Industrial Safety
Ensure maximum workplace safety with our state-of-the-art handheld laser methane telemetry instrument. Engineered for high-precision CH4 gas detection, this device utilizes advanced tunable diode laser absorption spectroscopy (TDLAS) to detect methane leaks from a distance of up to 100 meters. It eliminates the need for close-range physical contact, making it ideal for hazardous industrial environments, natural gas pipelines, and chemical plants.

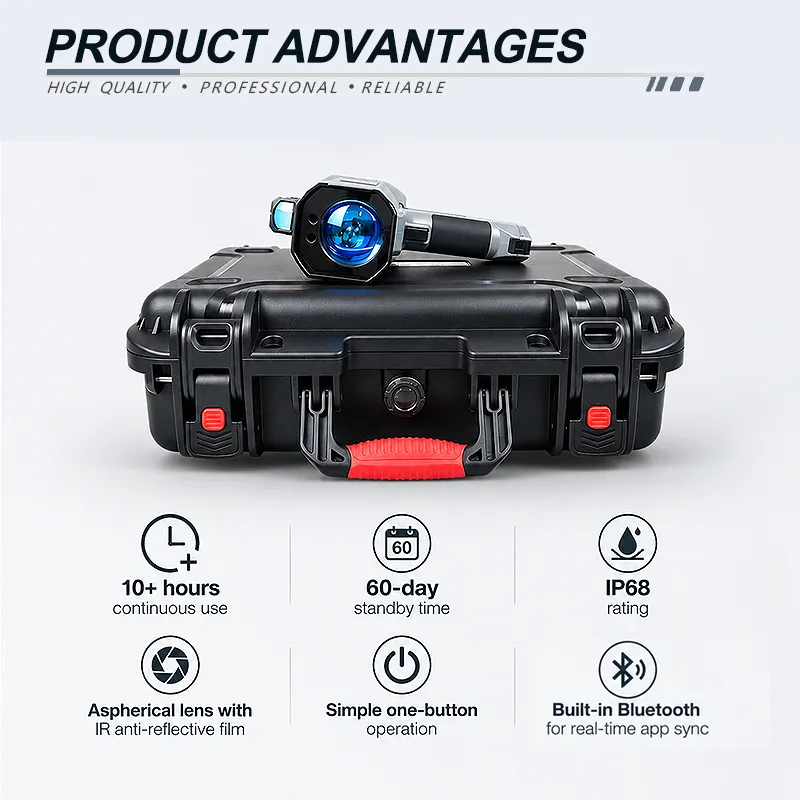

Key Performance Advantages of Our CH4 Gas Detector
Designed with rugged durability and user convenience in mind, our portable CH4 detector delivers unmatched reliability in harsh environments.
1.Long Operating Range: Accurately detects methane leaks up to 100 meters away.
2.Exceptional Battery Life: Powered by dual batteries supporting over 10 hours of continuous use and up to 60 days of standby time.
3.Rugged Protection: Built with an IP68 rating and robust PC+ABS housing for extreme working conditions.
4.Smart Connectivity: Features built-in Bluetooth for real-time mobile app synchronization and data management.

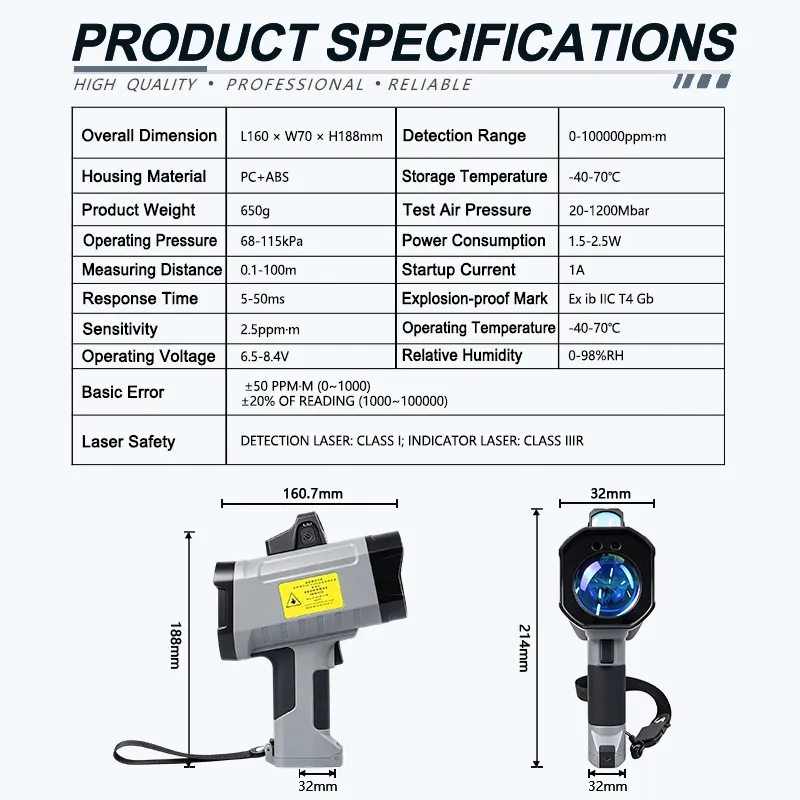

Technical Specifications & Complete Configuration

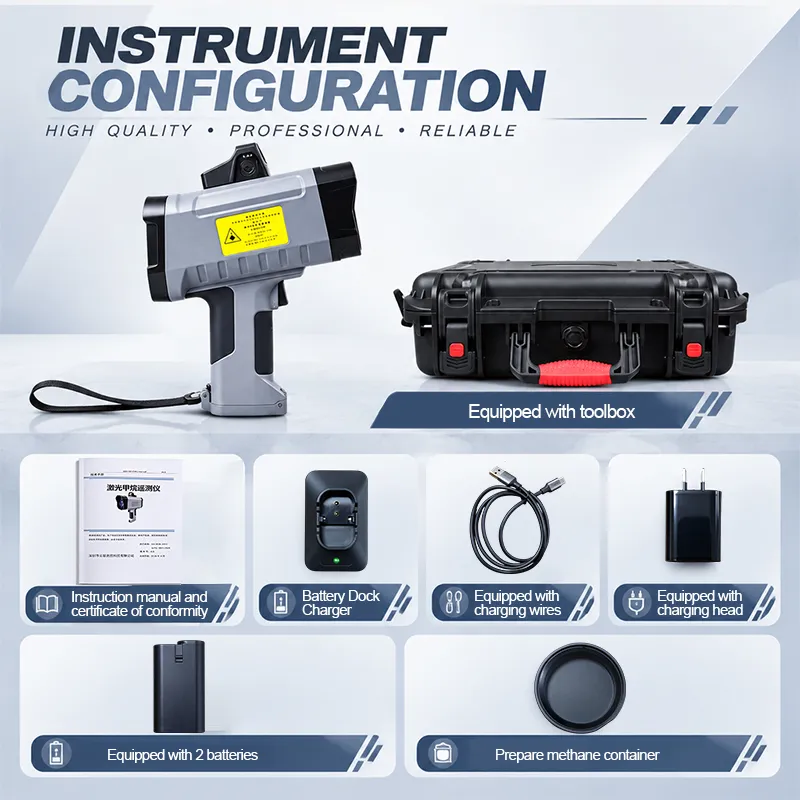

Our laser methane detector is equipped with a comprehensive set of accessories in a durable toolbox, ensuring you have everything needed for immediate field deployment.
| Technical Parameter | Specification Detail |
| Detection Range |
0-100000ppm·m |
| Measuring Distance |
0.1-100m |
| Response Time |
5-50ms |
| Explosion-proof Mark |
Ex ib IIC T4 Gb |
| IP Rating & Housing |
IP68 / PC+ABS |
| Product Weight |
650g |
Frequently Asked Questions (FAQ)
Q1: What is the maximum detection distance for this laser methane detector?
A1: The instrument can detect methane leaks from a measuring distance of 0.1 to 100 meters safely and accurately.
Q2: Does this device support explosion-proof certification for hazardous areas?
A2: Yes, it features an Ex ib IIC T4 Gb explosion-proof rating, making it suitable for volatile industrial environments.
Q3: How long does the battery last on a single charge?
A3: It supports over 10 hours of continuous operation and offers up to 60 days of standby time with its equipped dual batteries.
