Portable 5-in-1 Pump Suction Gas Detector | Skyeaglee
-
Model: HNAG920-5H
-
Detection: O2, H2S, CO2, CO, N2
-
Detection Principle: Electrochemistry; Infrared NDIR
-
Detection range: CO2: 0-100%VOL; H2S: 0-100ppm; CO: 0-500ppm; O2: 0-30%VOL; N2: 0-100%VOL
Product Description

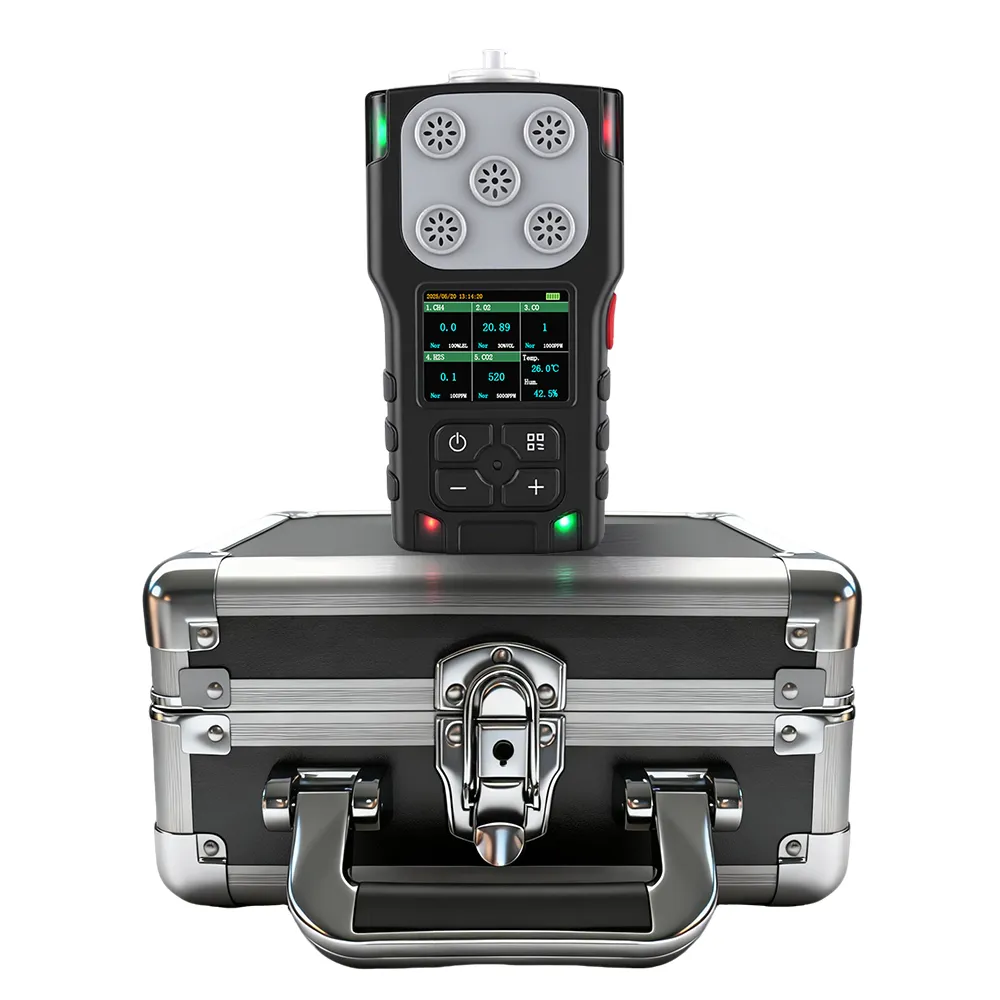

Advanced Portable 5-in-1 Pump Suction Gas Detector
Ensuring safety in hazardous and confined spaces requires versatile and reliable monitoring. The HNAG920-5H Portable Pumping Gas Detector is engineered for real-time and accurate detection of gas concentration and leakage. This advanced instrument supports both pumping and diffusion modes in one unit and can be expanded to detect up to 5 gases simultaneously, specifically measuring O2, H2S, CO2, CO, and N2.
Rugged PC+TPU Housing & Intrinsically Safe Design
Designed to survive demanding industrial environments, this portable gas monitor features a heavy-duty PC+TPU housing utilizing a rubber overmolding process for superior impact resistance. The device holds an impressive IP65 protection grade against dust and water. Furthermore, it complies with strict safety standards, featuring an Ex ib ll CT4 Gb explosion-proof grade.
Smart Display & Multi-Sensory Alarms

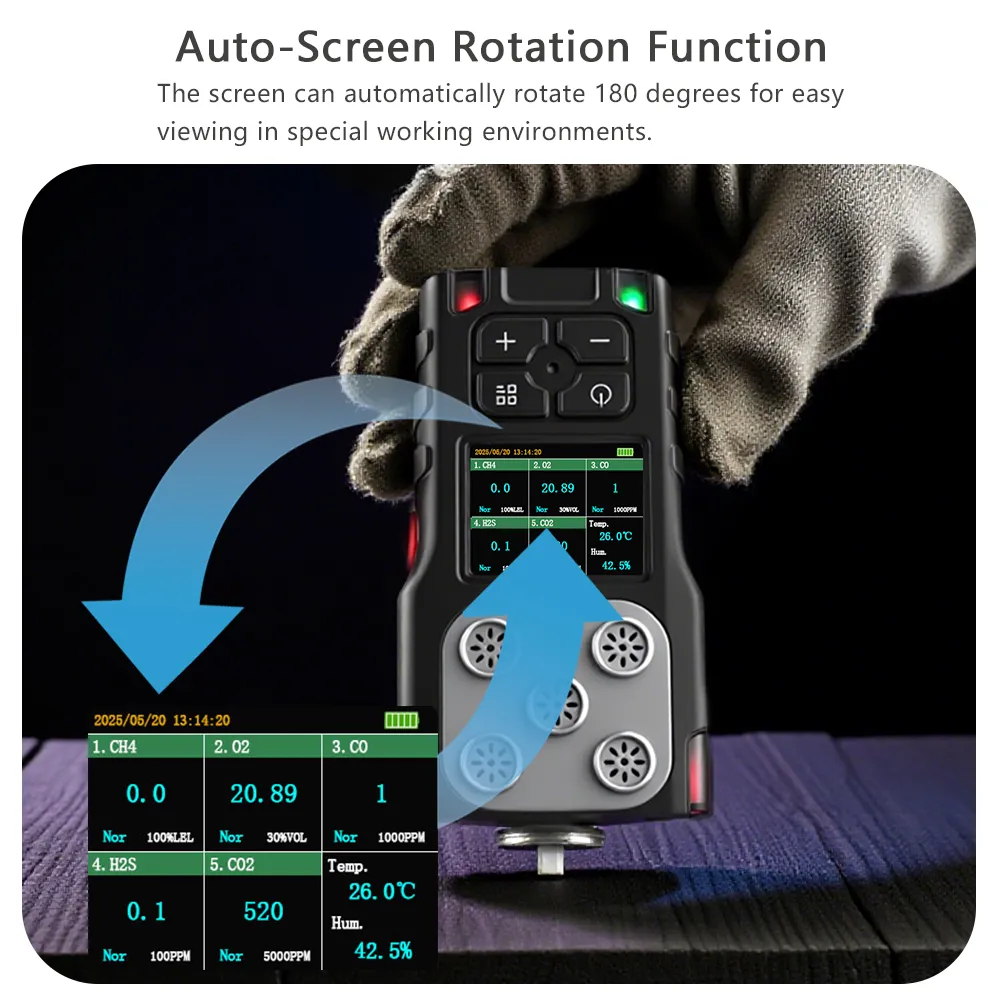

The device is equipped with a bright 2.0-inch color LCD (resolution 320*240) that clearly displays multiple gas readings simultaneously. For maximum convenience in awkward positions, the screen features an innovative 180° auto-rotating function. User safety is enhanced by a robust alarm system featuring high and low alarm settings, along with a crucial fall alarm and a one-touch emergency alarm function.
Wireless Transmission & Extensive Data Storage
Modern safety protocols demand connected data. The HNAG920-5H supports comprehensive wireless communication methods, including 4G, WiFi, Bluetooth, and LoRa transmission modes. It boasts an immense internal memory capable of storing 120,000 historical data entries and 30,000 alarm records.

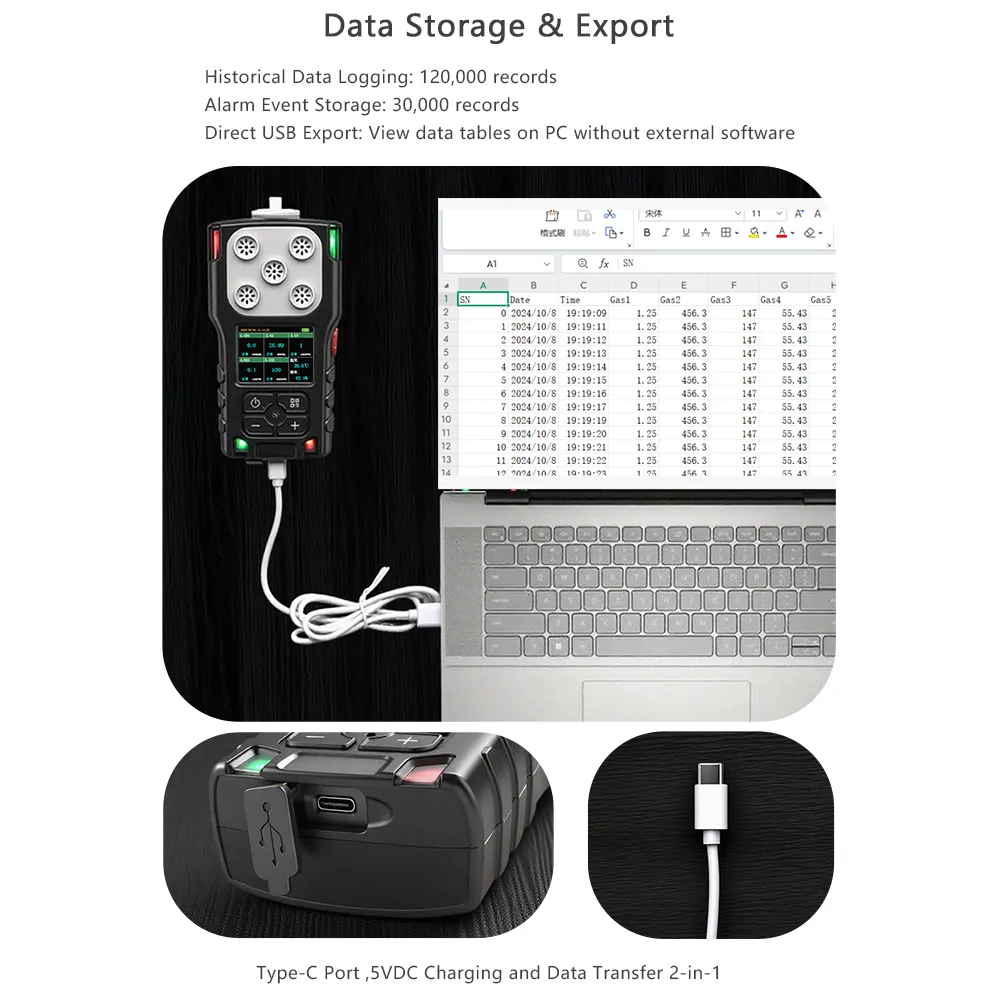

Convenient Type-C Charging and Data Export
Equipped with a built-in 2400mAh lithium battery, the device ensures long-lasting operation. It features a modern Type-C charging interface that doubles as a USB output. Users can effortlessly export and manage data by connecting the device to a computer via a USB cable, eliminating the need for complex external software.

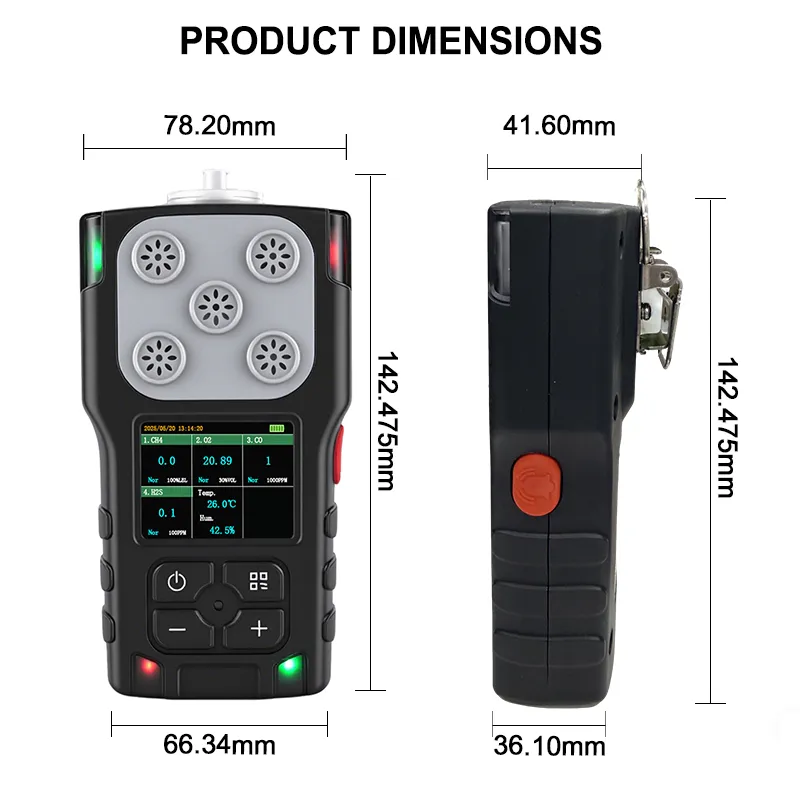

Compact Dimensions
Frequently Asked Questions (FAQ)
Q: What gases can this detector measure simultaneously?
A: This model is configured to simultaneously measure Oxygen (O2), Hydrogen Sulfide (H2S), Carbon Dioxide (CO2), Carbon Monoxide (CO), and Nitrogen (N2).
Q: Does it have an internal pump?
A: Yes, it features an integrated design that supports both active pump suction and passive diffusion sampling methods.
Q: Can I extract the logged data?
A: Absolutely. The device stores up to 120,000 data entries and features an external USB Type-C port for easy data export to a computer.
Q: What is the battery capacity and charging method?
A: It is equipped with a built-in 2400mAh lithium battery and charges via a convenient Type-C interface.
Q: Can the type of gas being detected be changed?
A:Yes, we support customization of the gases to be detected; additionally, the H920 can be customized to monitor temperature and humidity.
