Portable C2H2 Acetylene Single Gas Detector, Multi Range Industrial Acetylene Gas Monitor
Model：HNAG920-C2H2
Detection：Acetylene (C2H2) single gas detection
Detection Principle：High-precision electrochemical / catalytic combustion sensor (match range)
Detection range：0-10(20)ppm, 0-100(200)ppm, 0-200(200)ppm, 0-5%LEL, 0-10%LEL, 0-30%LEL, 0-50%LEL, 0-100%LEL (customizable)
Product Description
HNAG920-C2H2 Portable C2H2 Acetylene Single Gas Detector Overview

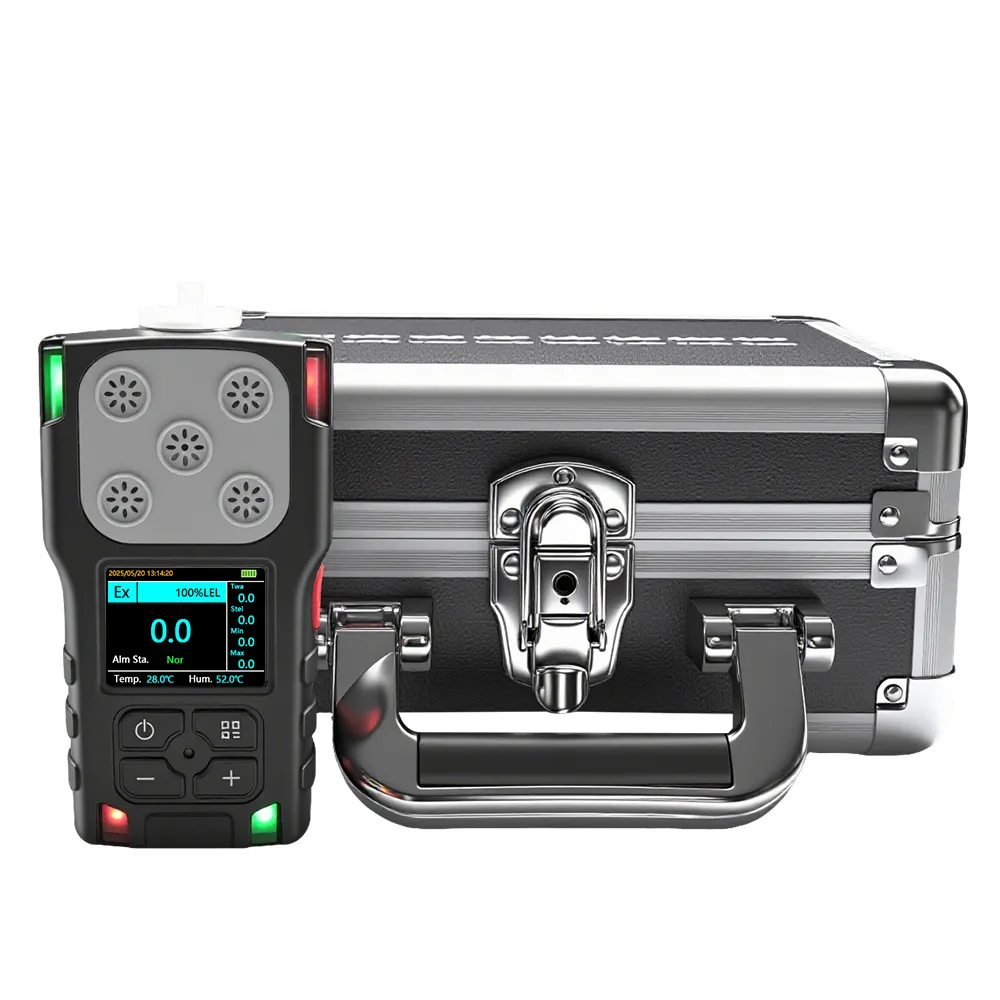

Complete C2H2 Detector Kit & Anti-Drop Industrial Housing
Our HNAG920-C2H2 acetylene gas detector comes with a shock-resistant aluminum storage case for on-site welding workshops, chemical plants and pipeline inspection. The shell adopts wear-resistant PC+TPU material, equipped with four-sided red/green LED alarm lights and built-in buzzer to send visual & audible dual warning signals when C2H2 concentration exceeds safety threshold.

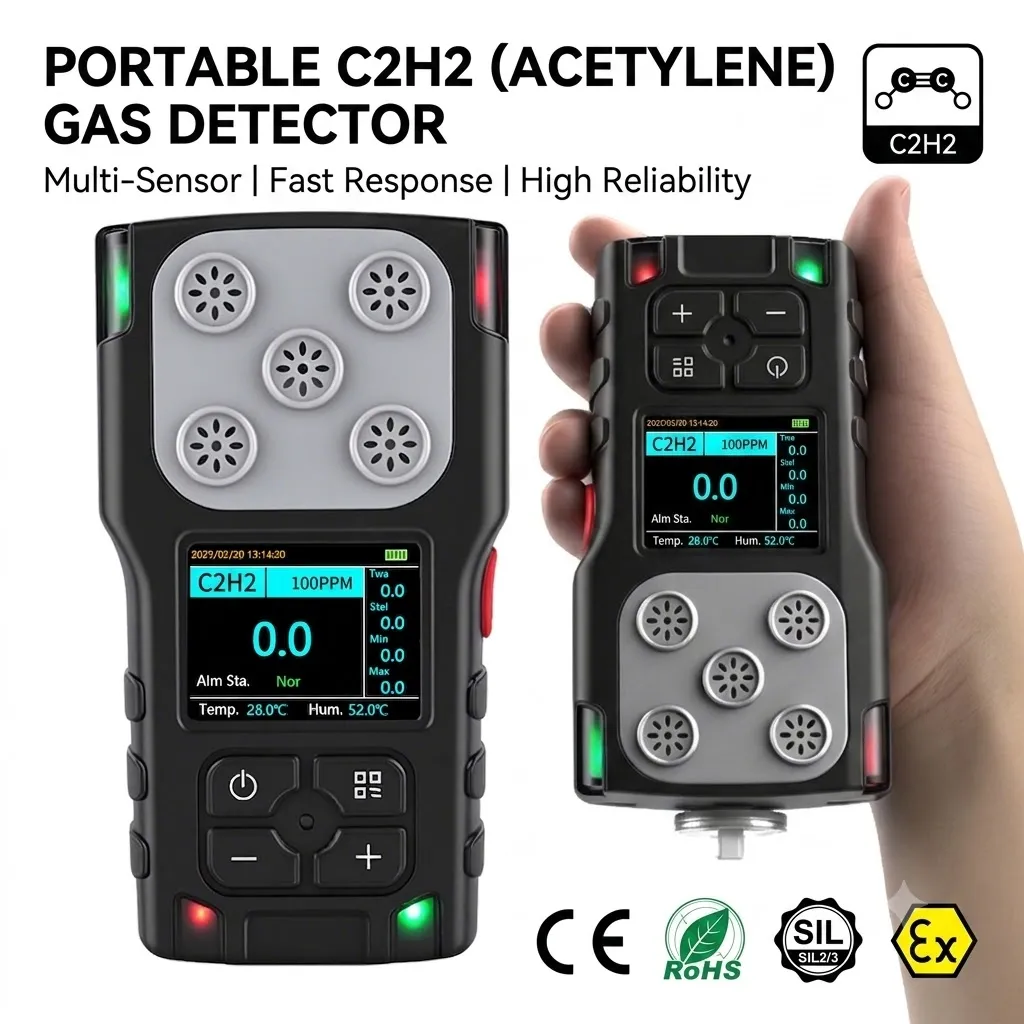

Standard C2H2 Detection Ranges & Global Safety Certifications
This handheld C2H2 single gas monitor covers full measuring ranges for industrial acetylene detection, including low ppm trace leakage and LEL combustible explosion monitoring. It passes CE, RoHS, SIL2 safety integrity level and Ex explosion-proof certification, fully compliant with hazardous workshop safety standards. The rear metal back clip allows clipping on workwear for all-day portable acetylene inspection.
Detailed Structural Component Introduction of HNAG920-C2H2 Acetylene Detector

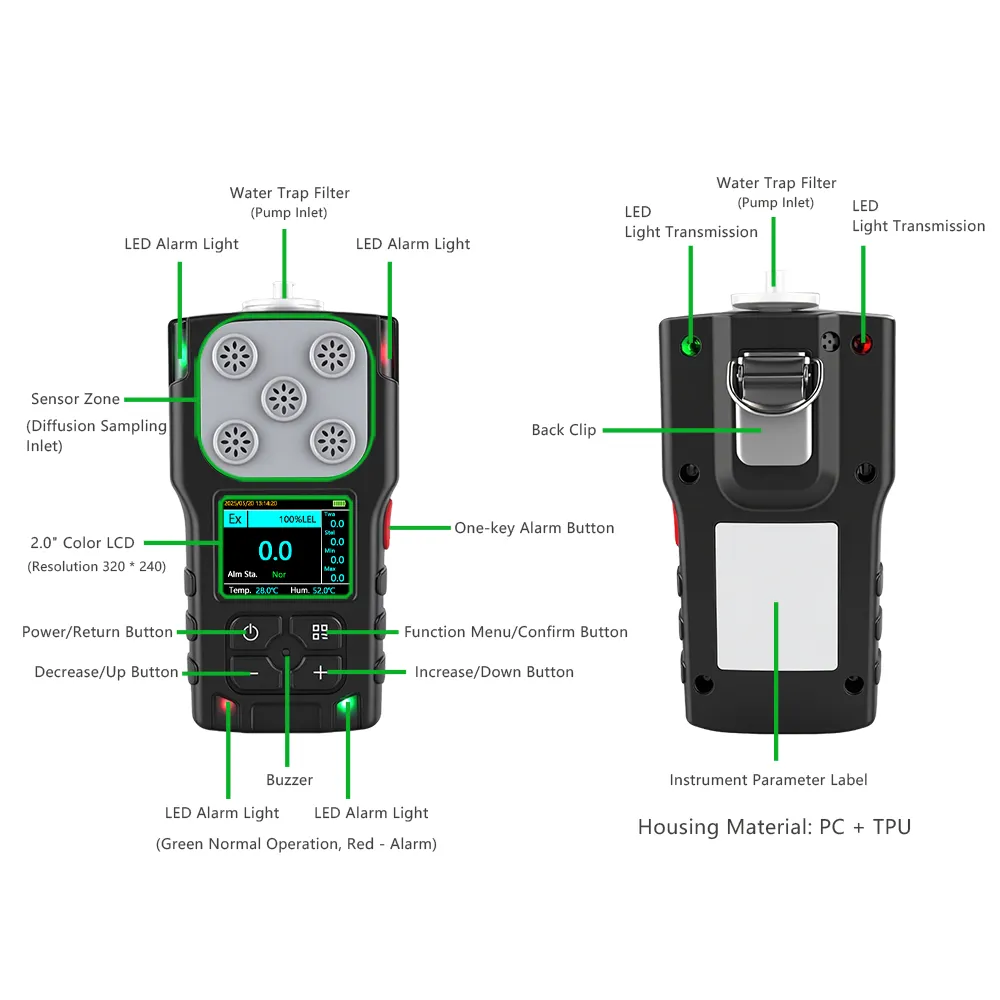

Labeled Functional Parts Diagram For C2H2 Detector Operation
Every component of the C2H2 detector is optimized for industrial field operation: top water trap filter blocks moisture to protect sampling pump; independent physical buttons support quick range switching and parameter adjustment; prominent red one-key emergency alarm button for instant hazard alert. Green LED represents normal running state, red LED triggers immediately for over-limit C2H2 gas.
Core Advanced Functional Features of Industrial C2H2 Acetylene Detector

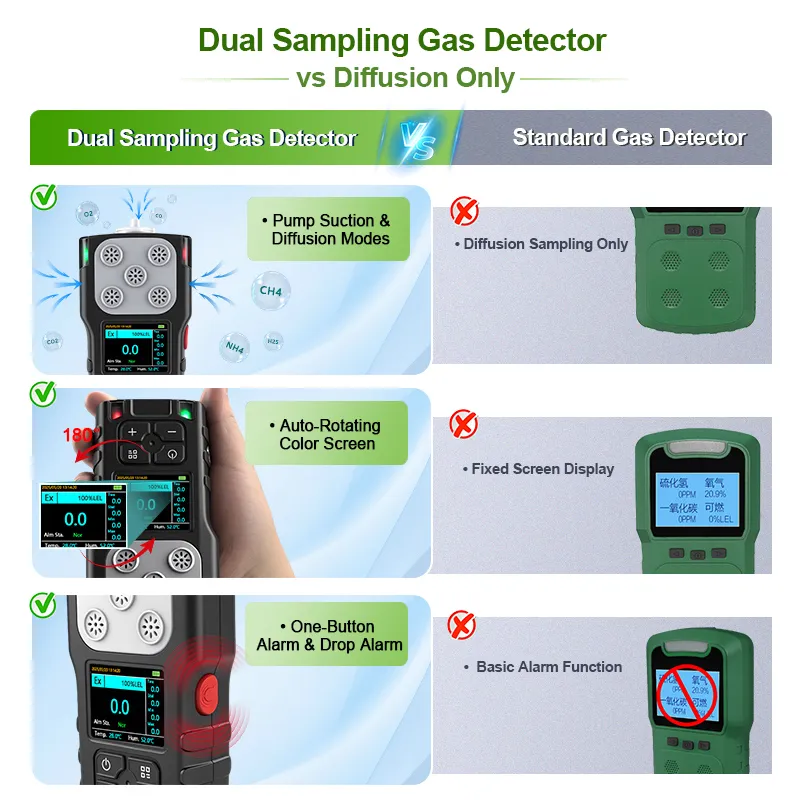

Dual Pump Suction & Diffusion Sampling For Complex C2H2 Detection Scenarios
Different from ordinary single diffusion gas detectors, this C2H2 analyzer integrates pump suction + diffusion dual sampling modes. Pump mode can actively extract acetylene gas from confined pipelines, closed storage tanks and narrow confined spaces, while diffusion mode fits open welding workshop real-time monitoring. It also supports drop-triggered automatic alarm for extra on-site safety protection.

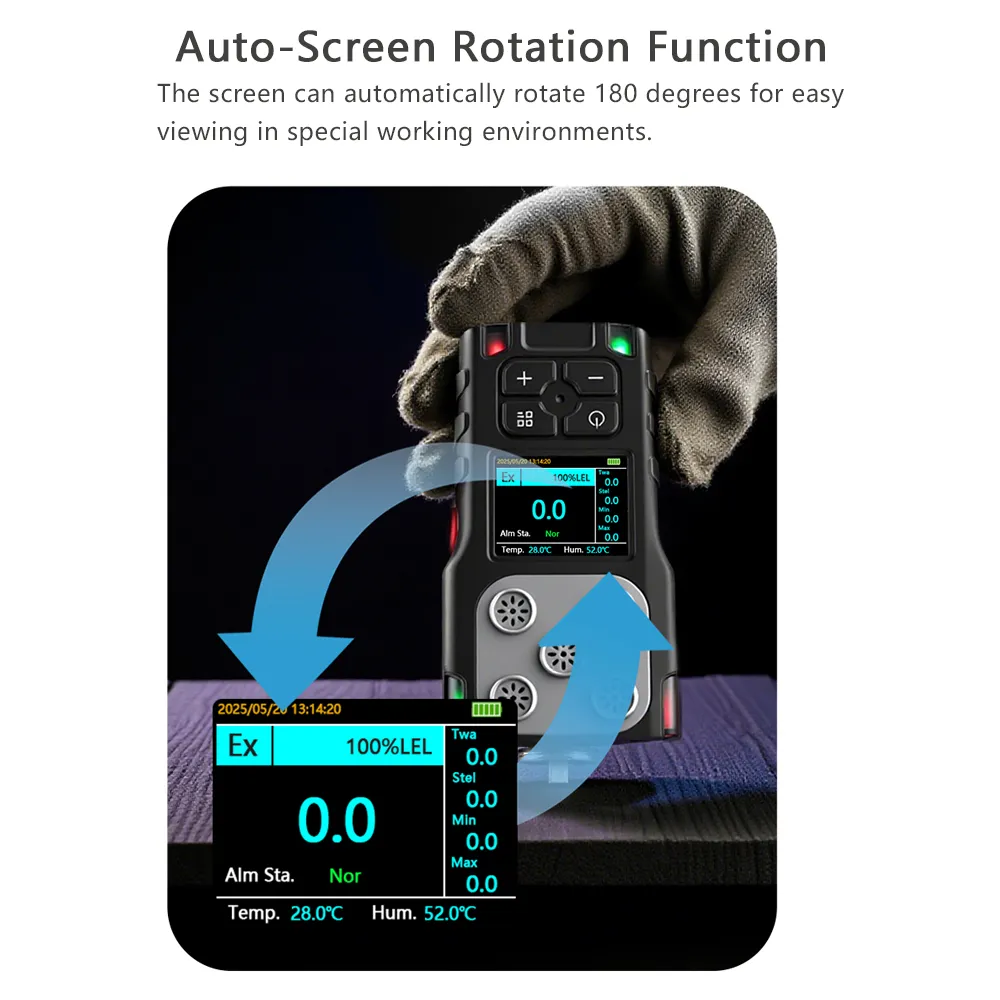

180° Auto Rotating Color LCD Screen For Convenient C2H2 Data Viewing
Equipped with a 2.0-inch 320*240 high-definition color screen with auto 180° rotation function. When holding the C2H2 detector upside down for low-position pipeline inspection or overhead welding monitoring, the screen flips all data automatically, ensuring clear reading of acetylene concentration, ambient temperature and humidity data at all times.

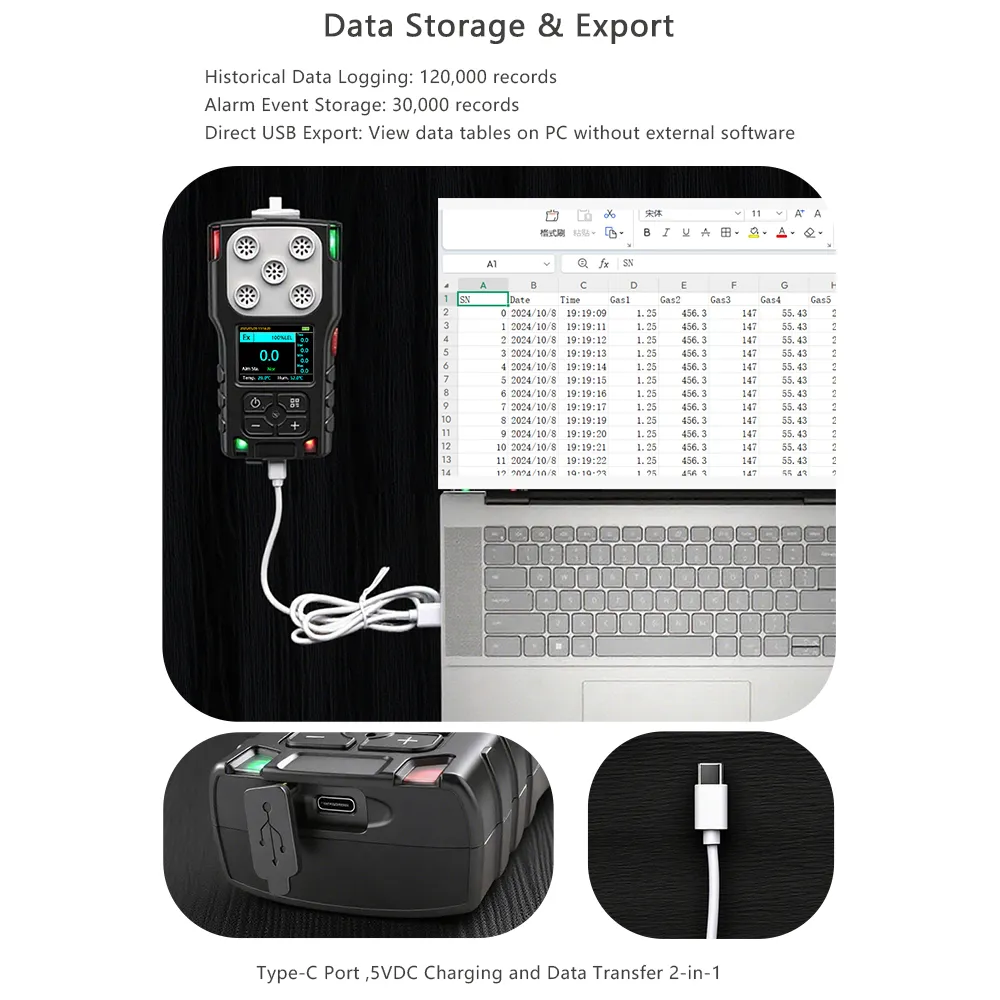

Large Capacity Data Logging & Type-C One-Click C2H2 Data Export
The HNAG920-C2H2 acetylene gas monitor stores up to 120,000 historical detection records and 30,000 alarm event logs. The built-in Type-C dual-purpose port supports 5VDC charging and direct USB data export. You can open complete C2H2 inspection data tables on any PC without installing extra professional analysis software, convenient for factory safety record archiving and audit.
Multi Wireless Transmission For Remote C2H2 Gas Data Management
This portable C2H2 leak detector supports 4G, WiFi, Bluetooth and LORA four wireless transmission methods. Users can check real-time acetylene concentration data on mobile phones, print daily inspection reports via Bluetooth thermal printers, or upload continuous monitoring data to cloud platforms for long-distance industrial safety supervision.
Frequently Asked Questions About HNAG920-C2H2 C2H2 Acetylene Single Gas Detector
Q1: Can I customize the C2H2 acetylene detection measuring range?
A: Yes, we supply multiple standard ranges covering trace ppm leakage and combustible LEL monitoring, customized detection ranges are available according to your welding or chemical plant actual working environment.
Q2: What safety certifications does this C2H2 gas detector carry?
A: It has CE, RoHS, SIL2 safety integrity level and Ex explosion-proof certifications, which meet international safety standards for workshops with flammable acetylene gas hazards.
Q3: What is the maximum data storage capacity of the acetylene monitor?
A: The detector can save 120,000 sets of C2H2 historical detection data and 30,000 alarm records, all data can be exported to computer via Type-C USB without additional software.
Q4: Is the pump sampling function suitable for confined space acetylene detection?
A: Absolutely. The built-in suction pump can draw gas from closed pipelines, reaction vessels and narrow confined spaces, completing C2H2 leakage detection that pure diffusion detectors cannot finish.
Q5: Does the screen support upside-down viewing during acetylene inspection work?
A: Yes, the auto 180° screen rotation feature automatically flips all C2H2 concentration data, so you can clearly view readings no matter how you grip the device during low or overhead detection work.
