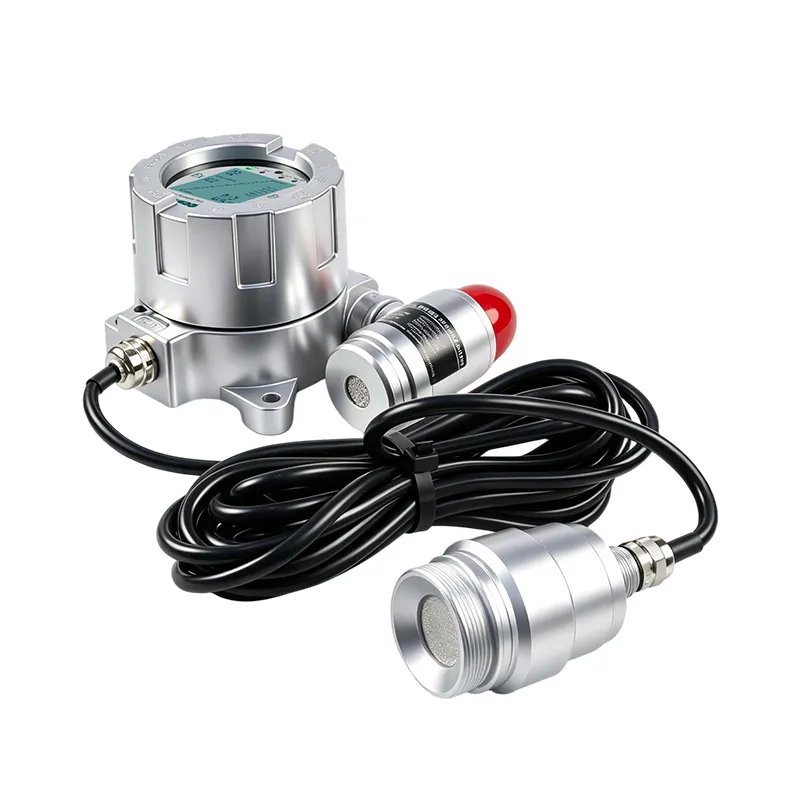

Split Hydrogen Chloride Gas Detector Industrial Monitor
Model: HNAG1000
Detection: Hydrogen Chloride (HBR/HCL)
Detection Principle: Electrochemical
Detection Range: 0-20 (50) ppm, 0-200 (400) ppm, 0-1000 (2000) ppm, 0-3000 (6000) ppm
Product Description
Advanced Split Hydrogen Chloride Gas Detector for Industrial Safety
Ensure absolute workplace safety with our high-performance split hydrogen chloride gas detector, specifically engineered for real-time monitoring of corrosive HCl gas leaks in chemical processing and industrial environments. Utilizing advanced electrochemical sensor technology, this instrument delivers exceptional measurement accuracy, rapid response times, and long-term operational stability.
Precise Electrochemical Detection & Flexible Measurement Ranges
Designed to accommodate diverse industrial monitoring needs, the detector offers versatile measurement ranges including 0-20 (50) ppm, 0-200 (400) ppm, 0-1000 (2000) ppm, and 0-3000 (6000) ppm. It incorporates a rugged die-cast aluminum housing and a clear 2.5-inch high-definition color LCD display showing real-time gas concentration, ambient temperature, and humidity.
Modular Split Architecture and Flexible Wiring Capabilities
The split design physically separates the display host from the electrochemical probe using a customizable extension cable (up to 5-10 meters or longer), enabling safe remote monitoring in hazardous zones. It supports standard 4-20mA, RS485 (MODBUS-RTU), and wireless signal options (LORA, ZigBee, 4G), alongside a passive relay contact output for direct integration with PLCs, DCS, and emergency ventilation systems.
Certified Explosion-Proof Protection & Typical Application Scenarios
Built with an Ex d IIC T6 explosion-proof rating and IP66 water and dust resistance, the unit performs reliably under harsh operating conditions from -20°C to 50°C. It is widely applied across chemical plants, pharmaceutical manufacturing, semiconductor facilities, metal smelting, and hazardous waste treatment plants where corrosive hydrogen chloride is handled.
Frequently Asked Questions (FAQ)
What is the primary use of the split hydrogen chloride gas detector?
It is used for continuous, real-time detection of hydrogen chloride ($HCl$) gas leaks in industrial settings, instantly triggering local audio-visual alarms and activating safety interlocks like exhaust fans via relay outputs to prevent toxic exposure.
Why choose a split design for HCl gas monitoring?
The split configuration allows the sensitive electrochemical probe to be positioned directly near high-risk leakage points while keeping the display and control unit in a safer, accessible location, protecting electronics from corrosive gas exposure and simplifying calibration.
How does the modular probe design reduce maintenance costs?
The detector utilizes a plug-and-play modular sensor architecture. When maintenance or sensor replacement is needed, individual components can be serviced independently without discarding the entire assembly, significantly saving operational costs.
