Portable Pump-Suction 4-in-1 Gas Detector EX O2 H2S CO
-
Model: HNAG-900-4H
-
Detection: EX, CO, O2, H2S
-
Detection Principle: Electrochemistry / Catalytic combustion
-
Detection range: EX 0-100%LEL ; H2S 0-100PPM ; CO 0-1000PPM ; O2 0-30%VOL
Previous: No more data
Product Description

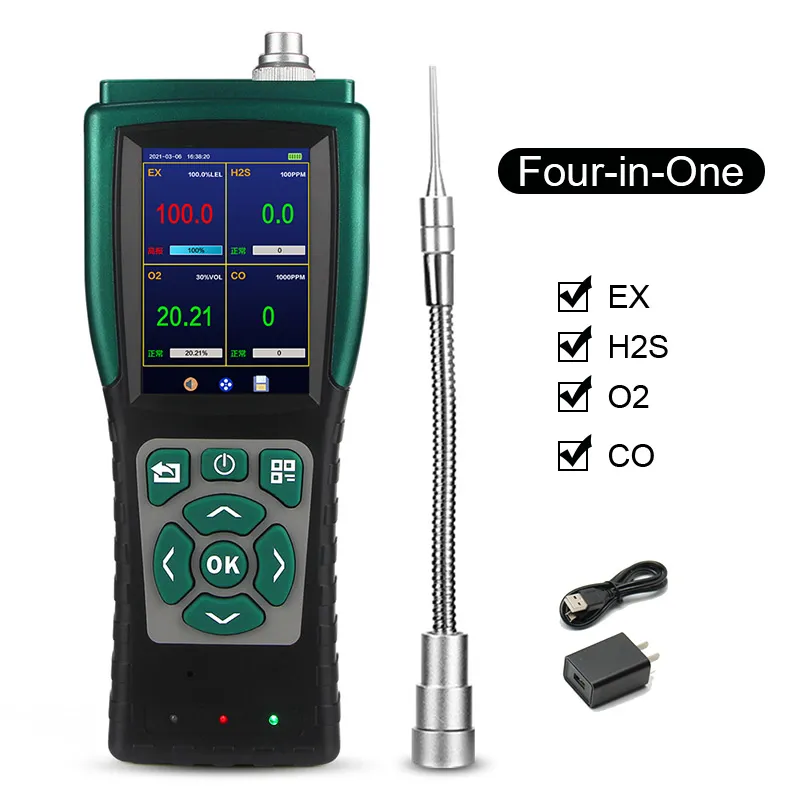

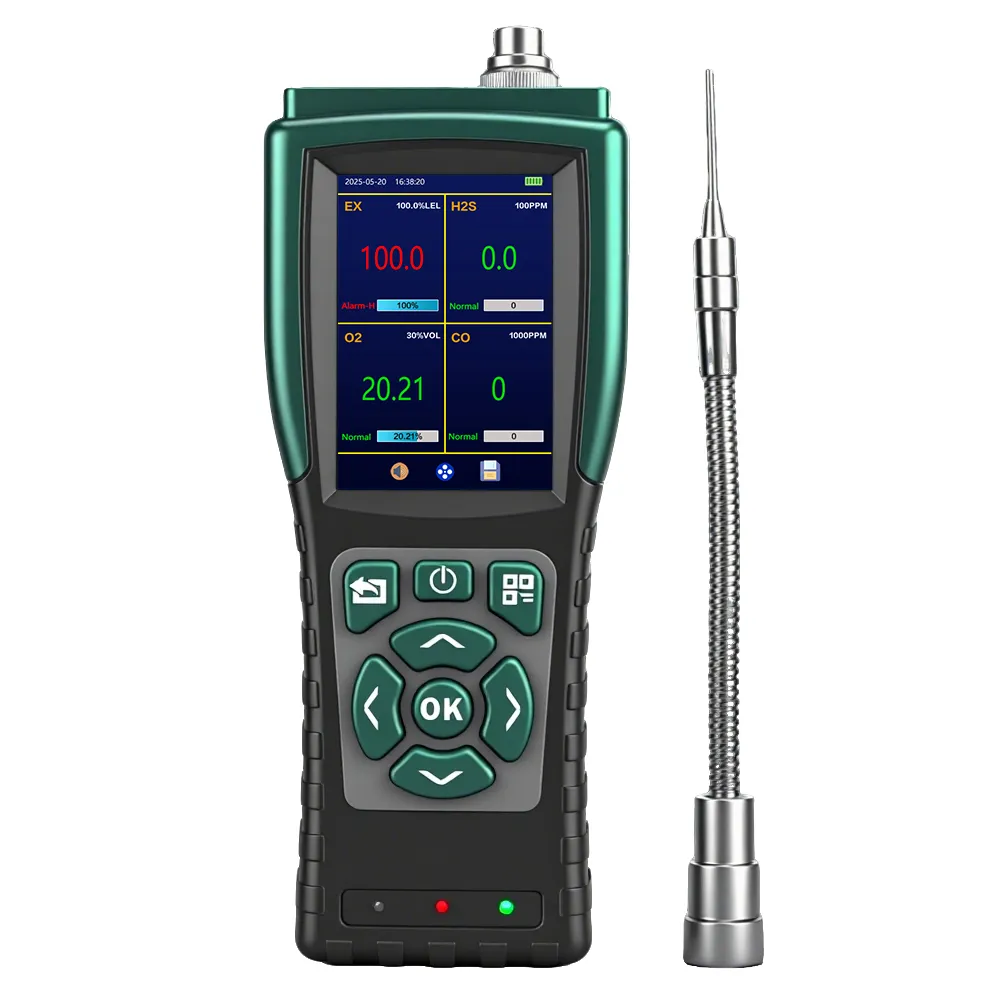

High-Precision Portable Pump-Suction 4-in-1 Gas Detector
The HNAG-900-4H-Z portable EX, CO, H2S, O2 gas concentration detector is expertly designed for the real-time, highly accurate detection of gas concentrations and leakages in diverse, high-risk industrial environments.
Advanced Active Pump-Suction & Multi-Gas Sensors
Unlike standard passive monitors, this device features a built-in micro sampling air pump with an adjustable gear speed, actively drawing gas samples into the sensor chamber for rapid analysis (Response time T90 < 10S). Utilizing premium electrochemistry and catalytic combustion principles, it delivers exceptional measurement accuracy (±3% F.S) for combustible and toxic gases.

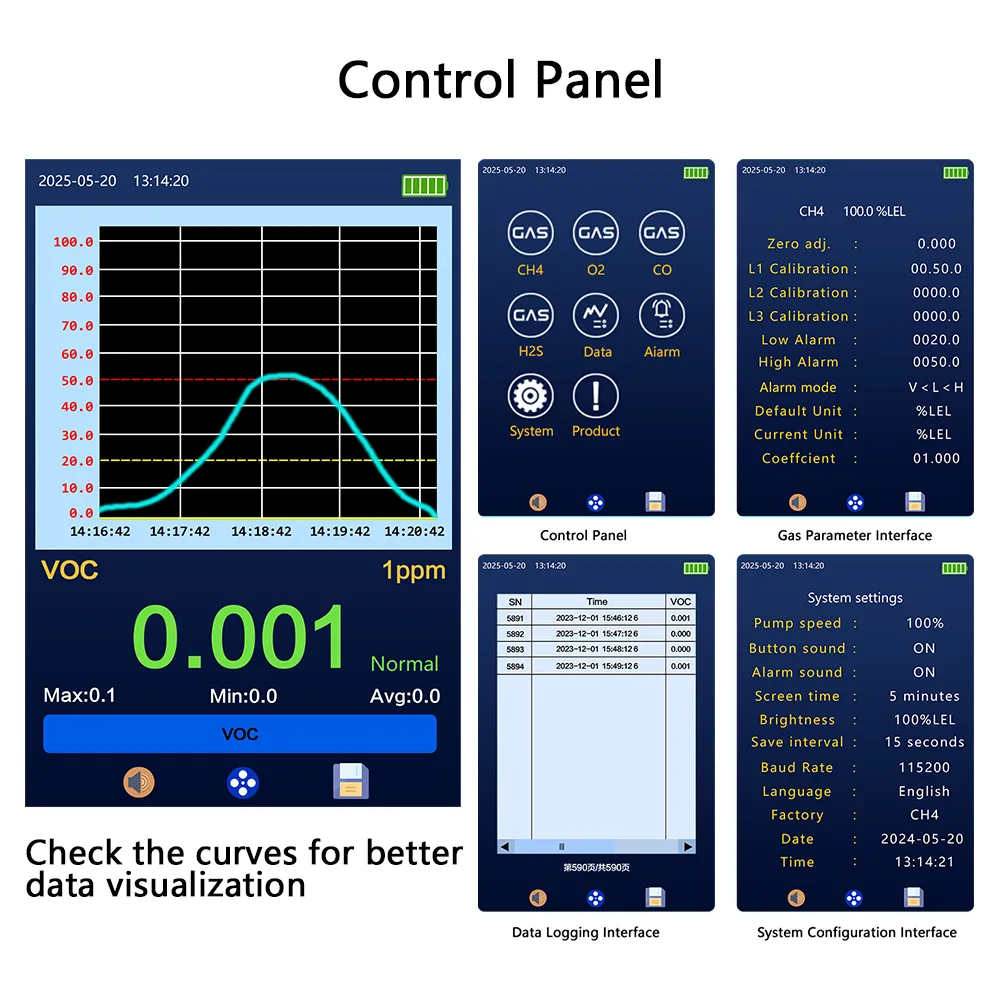

3.5-inch TFT Color Screen & Massive Data Logging
The detector is equipped with a vibrant 3.5-inch TFT color display (480x320 resolution) that provides a clear visualization of real-time concentrations, dynamic data trend curves, and real-time alarm statuses. It boasts an immense internal storage capacity, capable of saving up to 100,000 data entries and 1,000 alarm records.

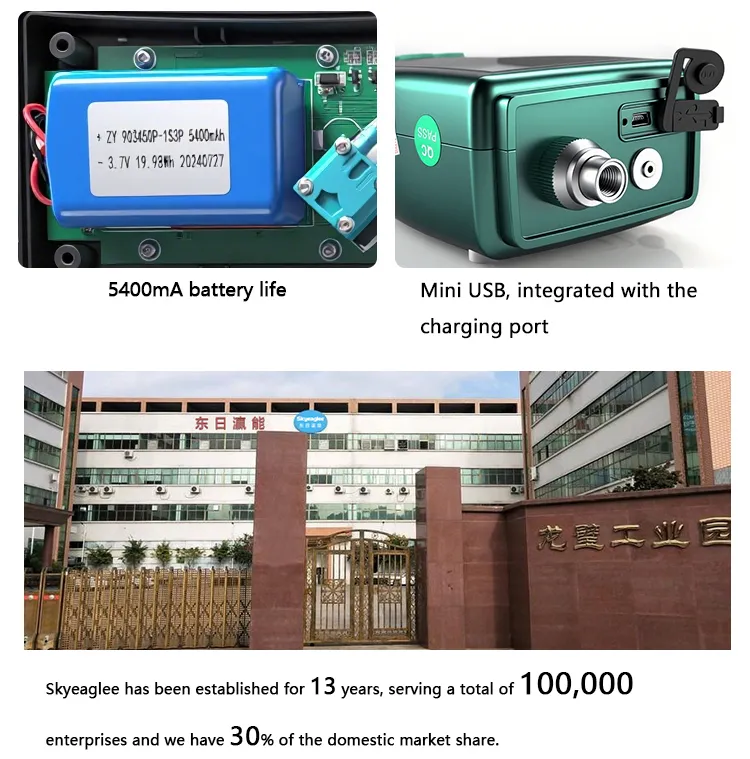

Powering these features is a robust 5400mAh lithium battery, guaranteeing extended standby and operational endurance. A seamlessly integrated Mini USB interface allows users to connect the device to a computer for rapid data export, while also functioning as the 5VDC charging port.

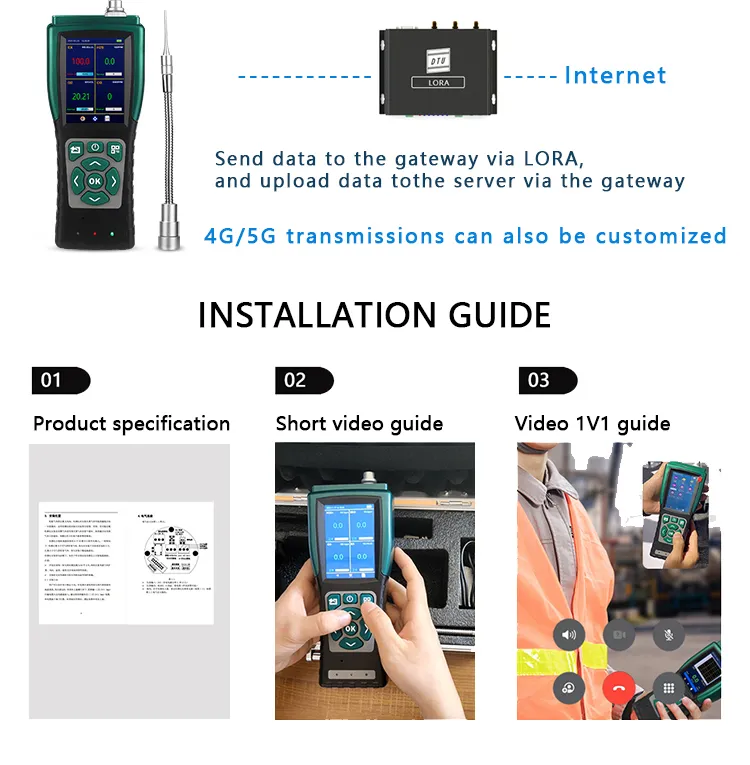

LoRa/4G Wireless IoT Capabilities & Rugged Design
Breaking traditional operational limits, this portable multi-gas monitor supports LoRa wireless transmission, effectively sending critical field data to gateways and servers via the internet. For broader coverage, 4G/5G transmissions can also be customized to fit your facility's IoT infrastructure.
Engineered for strict safety compliance, the device holds an Ex ib II CT4 Gb explosion-proof rating and IP65 protection grade. It operates reliably in challenging temperatures ranging from -20 to 50°C and humidity levels up to 95% RH.

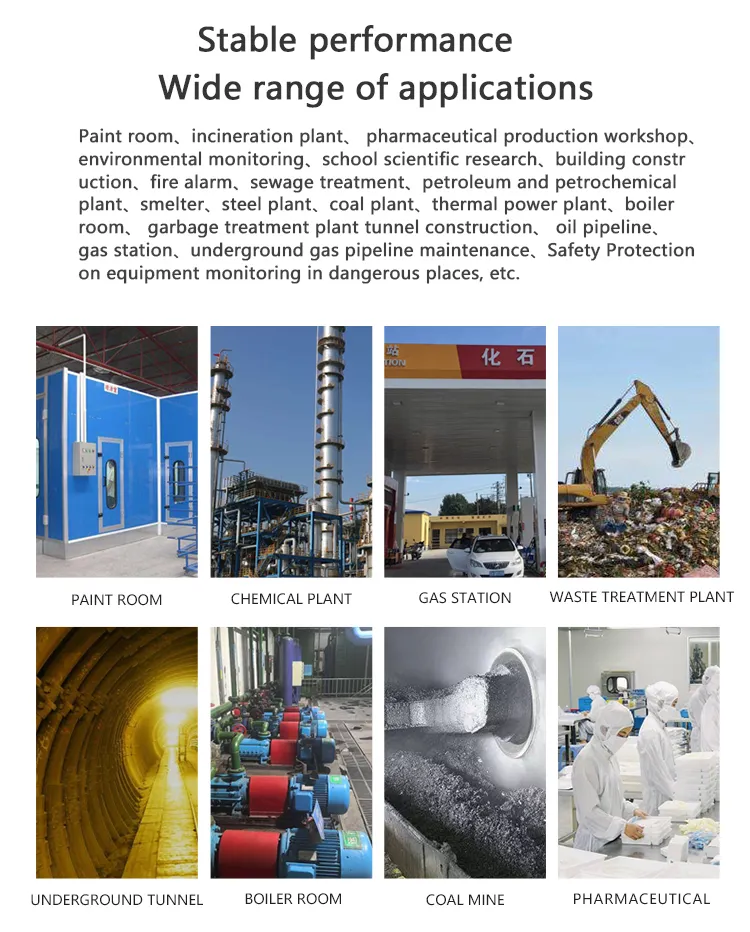

Wide Range of Industrial Applications
This portable analyzer is the ultimate safety companion for frontline workers in paint rooms, chemical plants, garbage treatment plants, underground tunnels, boiler rooms, coal mines, and pharmaceutical production workshops.

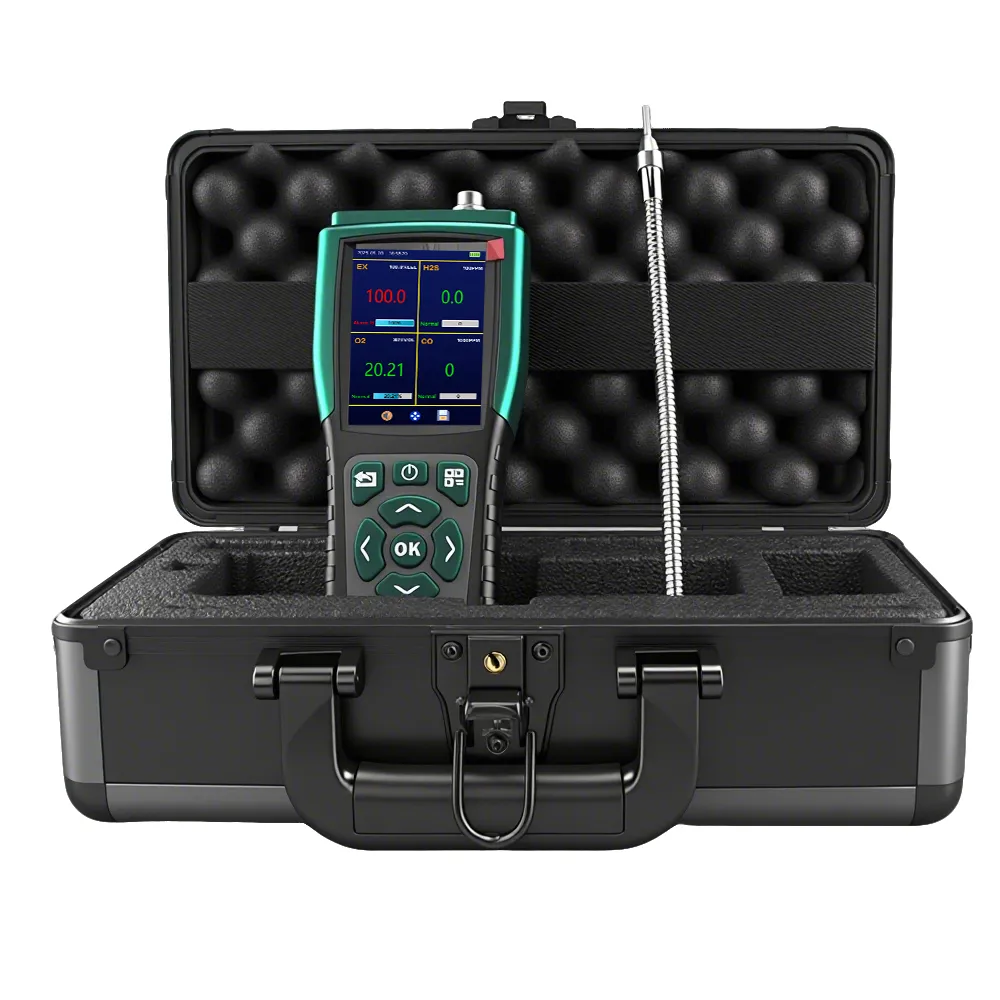

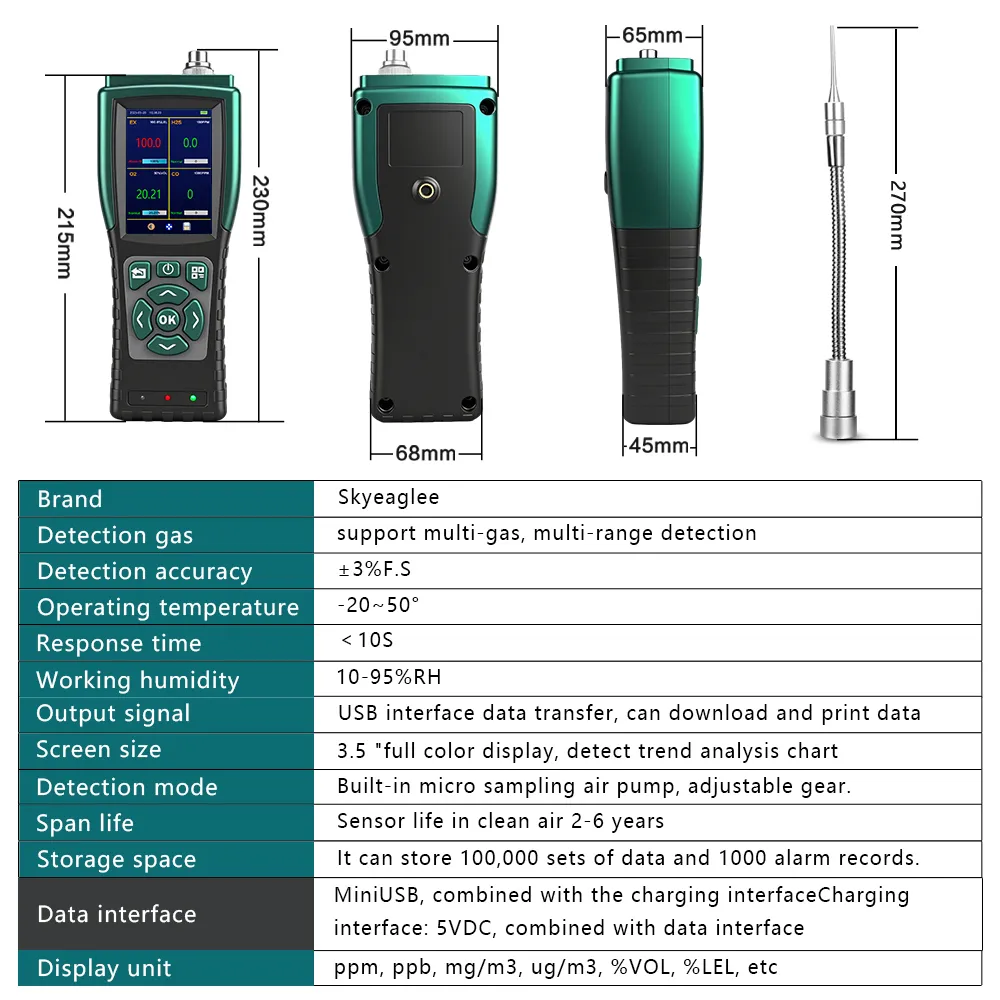

Compact Dimensions & Complete Kit
Measuring an ergonomic 230 x 95 x 65mm (excluding the sampling tube), the device is easy to carry and operate. The complete professional kit includes the detector, a flexible sampling wand, USB data/charging cable, 5V charger adapter, and a durable carrying case for safe transport.
Frequently Asked Questions (FAQ)
Q1: How does the pump-suction method improve detection?
A: The built-in micro sampling air pump actively draws air from the surrounding environment or confined spaces into the device. This allows for a much faster response time (T90 < 10S) and more accurate readings compared to passive diffusion detectors.
Q2: How long does the battery last?
A: The device is equipped with a high-capacity 5400mAh lithium battery, which provides an exceptionally long standby and continuous working time for extended field shifts.
Q3: Can I export the historical data to my computer?
A: Yes. The device stores up to 100,000 data entries and 1,000 alarm records. You can connect the detector to your computer using the included USB cable to view, download, and print the data.
Q4: Is the gas detector safe for explosive areas?
A: Absolutely. It features an intrinsically safe design and carries an Ex ib II CT4 Gb explosion-proof certification, making it safe for use in hazardous zones.
Q5: Can the device transmit data wirelessly to a control room?
A: Yes. The device supports LoRa wireless transmission to send data to servers via a gateway. Additionally, 4G/5G wireless transmission options can be customized based on your facility's requirements.
Q6: What is the expected service life of the sensors?
A: Under normal clean air conditions, the high-precision sensors have a service life ranging from 1 to 3 years (up to 6 years depending on specific usage and maintenance).
Q7: Can I change the measurement units on the display?
A: Yes, by modifying the coefficients in the system settings, you can easily switch between different display units such as ppm, ppb, mg/m3, ug/m3, %VOL, and %LEL.
Q8: What should I do if the air pump gets blocked?
A: Do not block the air inlet or outlet during operation to prevent clogging. If a blockage occurs and the pump fails to start, shut down the device quickly and restart it after clearing the obstruction.
