Portable Pump Suction CH4 Methane Gas Detector Honeywell Sensor Industrial CH4 Concentration Monitor
Model：HNAG900-CH4
Detection Gas：Methane (CH4)
Detection Principle：Catalytic combustion / Imported Honeywell S-series gas sensing principle, built-in vacuum pump sampling
Detection range：0-5%LEL,0-50%LEL,0-100%LEL,0-5%Vol (single range customizable)
Product Description
Core Performance of HNAG900 Portable CH4 Methane Detector

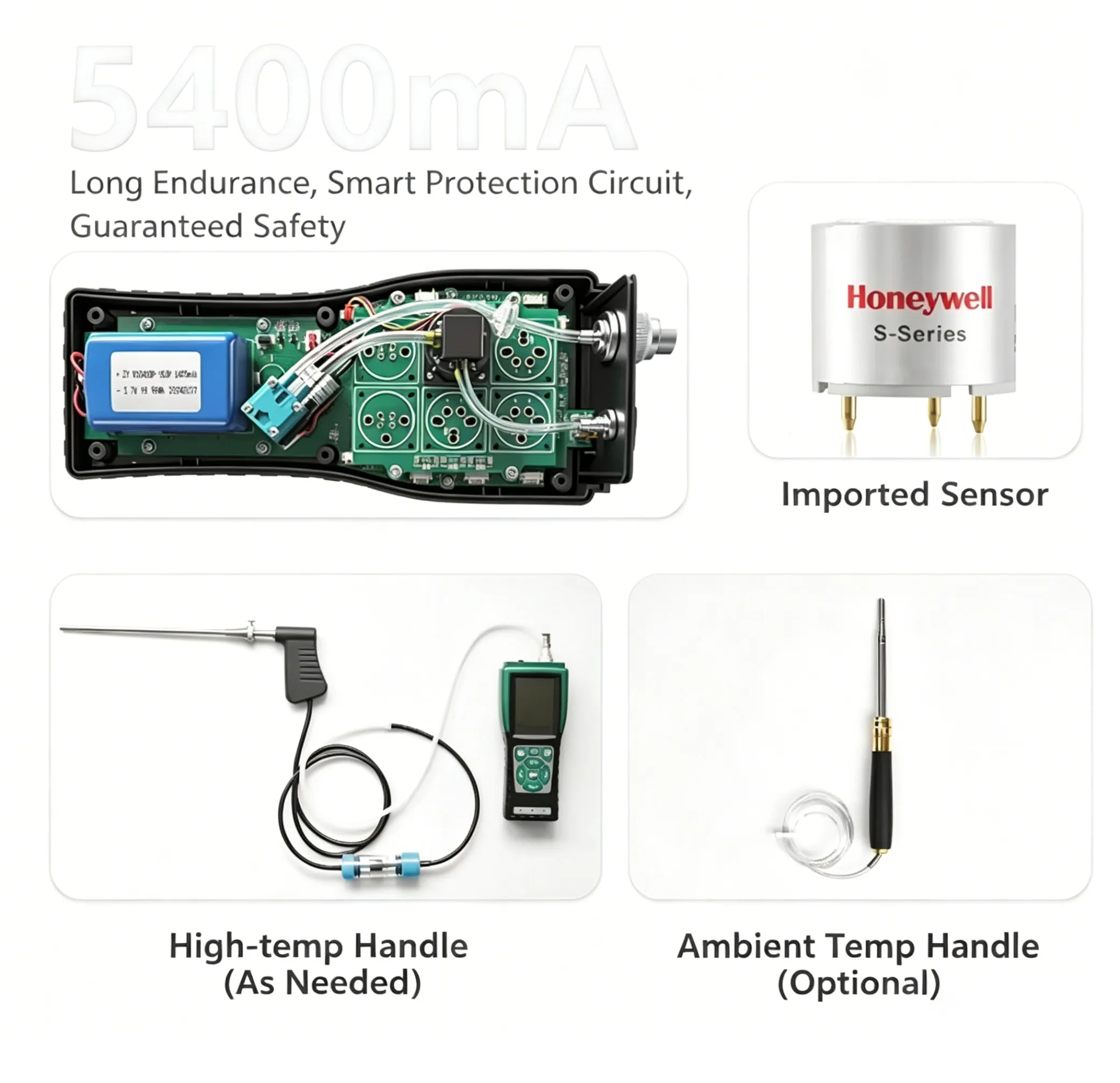

High Precision Imported Sensing & Stable Power Supply
This handheld CH4 methane detector adopts Honeywell S-series imported sensor, equipped with 5400mA large-capacity lithium battery and smart protection circuit to realize long continuous working time. Built-in adjustable vacuum suction pump features steady airflow, low noise and long service life for stable methane sampling detection.

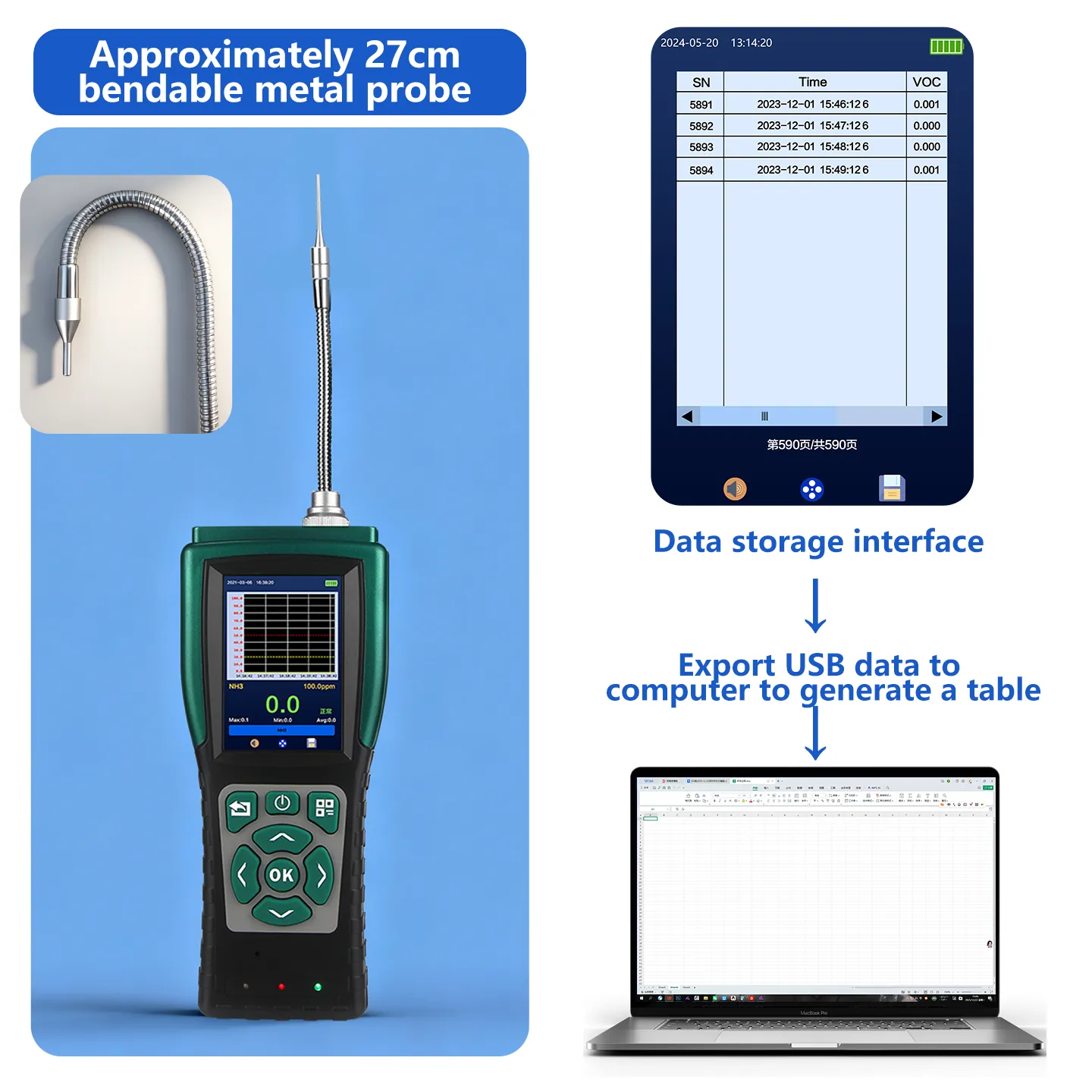

27cm Bendable Flexible Sampling Probe & Data Export Function
Standard matched with about 27cm removable bendable metal probe with double-layer spring protection for narrow-space methane leak inspection. The device automatically records detection time, CH4 concentration max/min/average data; you can export all stored records to computer via Mini-USB cable and generate tabular files for report archiving.

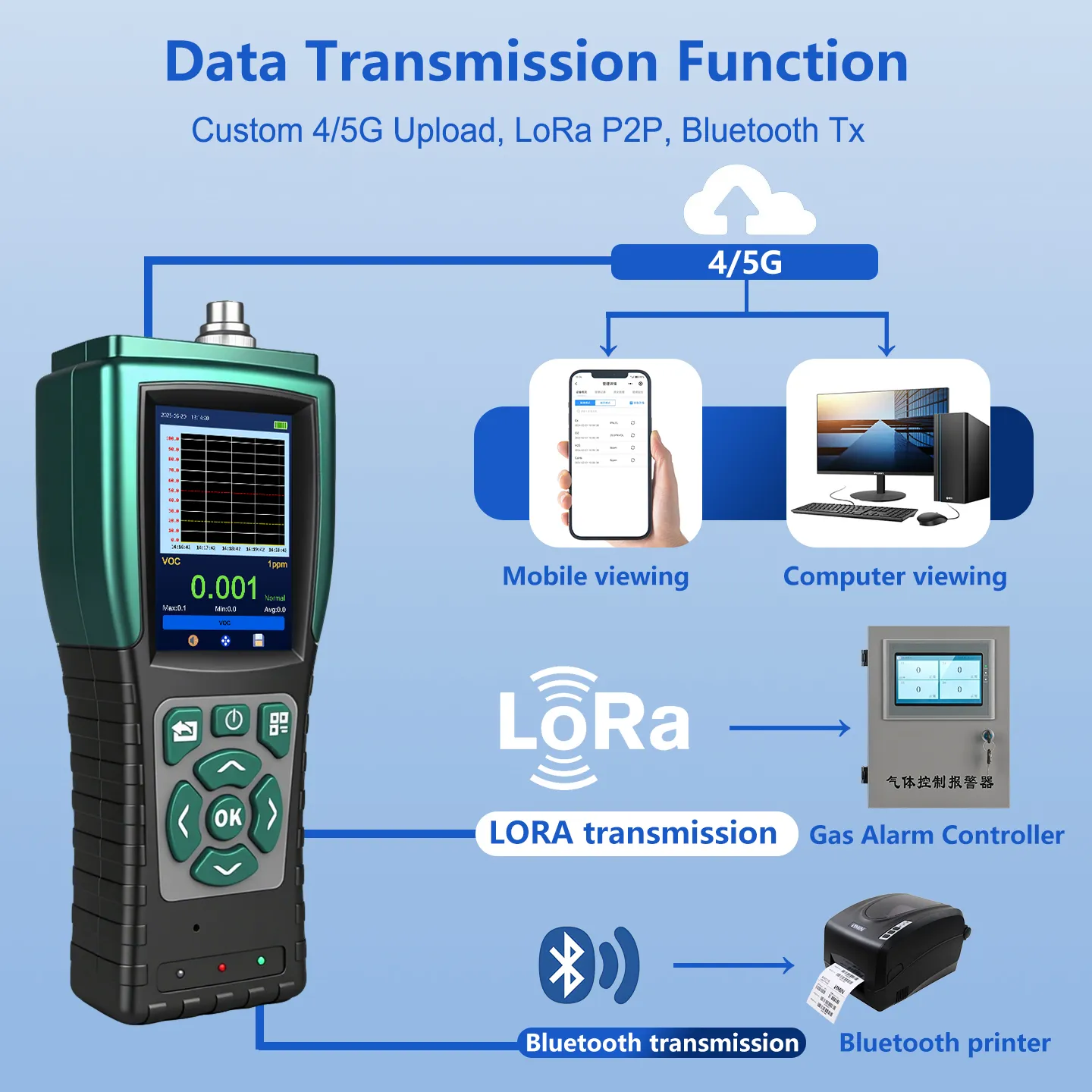

Multi-Mode Wireless Data Transmission for CH4 Detection Data
Remote Cloud Upload & Local Alarm Linkage
Custom 4/5G cloud upload supports mobile phone and computer remote real-time viewing for CH4 concentration data; LoRa P2P signal can connect the gas alarm controller to realize on-site alarm linkage monitoring.
Bluetooth Onsite Printing
Bluetooth transmission can connect portable Bluetooth printer, you can print methane detection reports immediately after field testing for on-site record keeping.

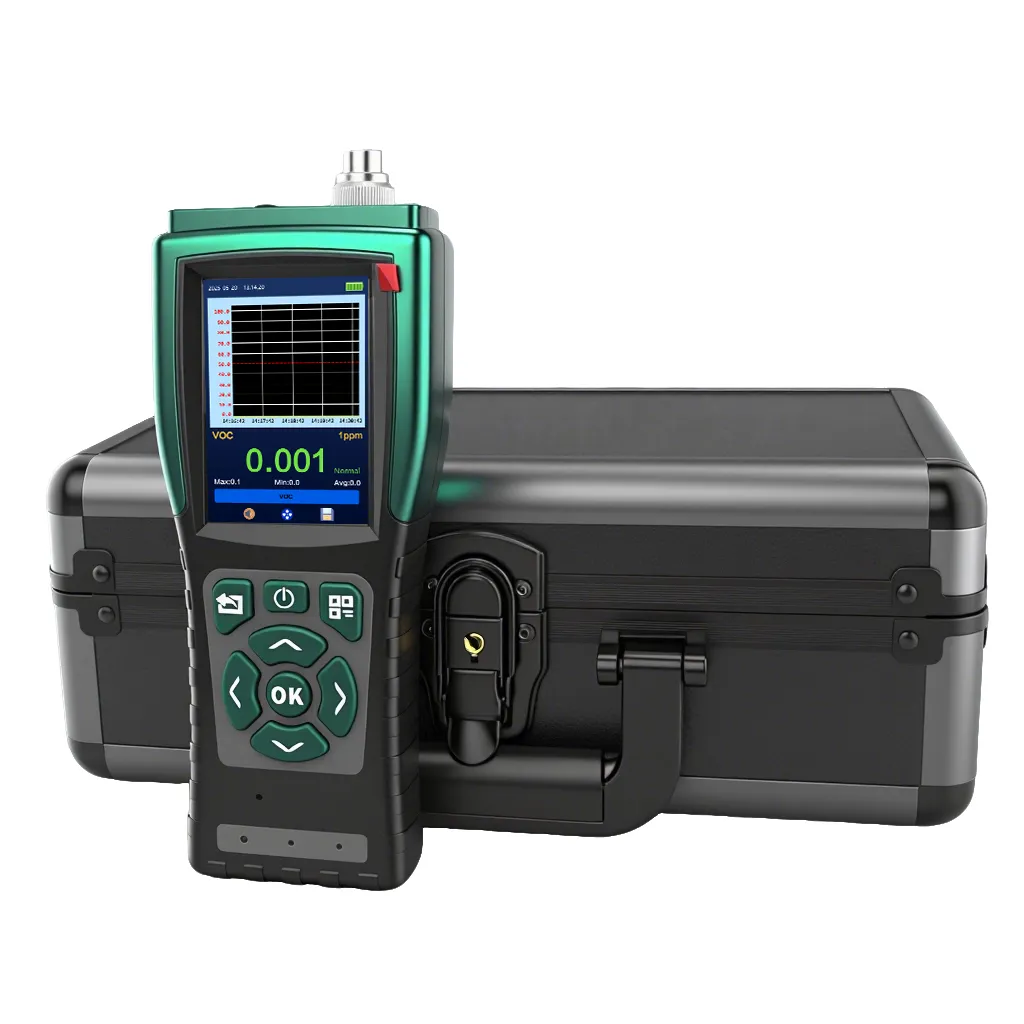

Complete Standard Accessories for Field CH4 Detection Work
Full package includes rugged aluminum alloy carry case, CH4 detector main unit, flexible sampling probe, Mini-USB data cable, power charger and English user manual, easy for outdoor onsite testing transport and daily storage.

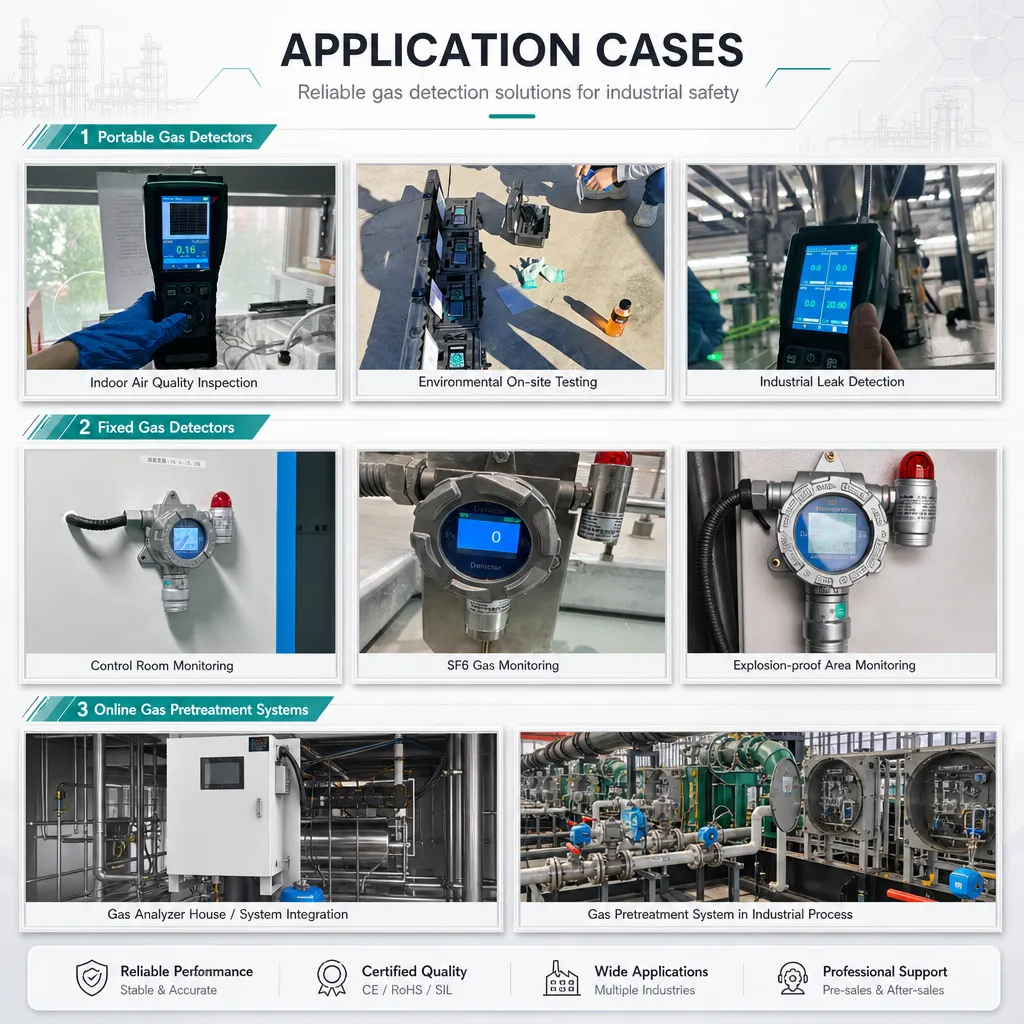

Main Application Scenarios of Handheld CH4 Methane Leak Detector
Industrial pipeline methane leakage inspection & explosion-proof area spot checking
Environmental on-site gas testing and indoor air quality assessment
Control room auxiliary sampling monitoring and gas pretreatment system verification

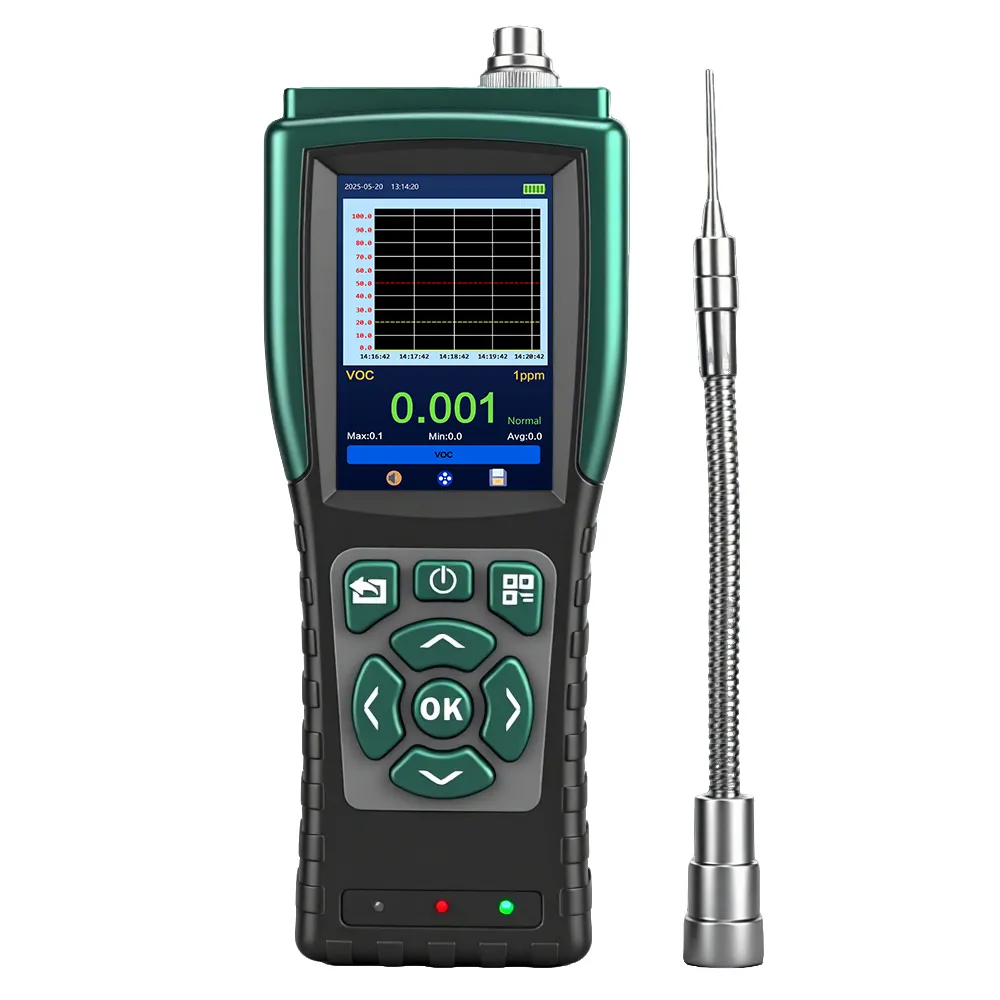

Main Unit Appearance & Operation Interface Introduction
Color LCD screen can display real-time CH4 concentration curve trend, support zero calibration, alarm threshold setting, language switch and other system operations; physical shortcut keys make field parameter setting and data checking more convenient.
FAQ (Layout long-tail search keywords)
Q1: What measuring ranges does HNAG900-CH4 support?
A: Optional customizable single ranges: 0-5%LEL,0-50%LEL,0-100%LEL,0-5%Vol for different methane detection scenarios.
Q2: Can I view CH4 detection data remotely?
A: Yes, it supports 4/5G cloud upload for mobile and PC remote viewing, LoRa can link to fixed gas alarm controller.
Q3: Is the sampling probe replaceable for special working conditions?
A: Standard 27cm bendable metal probe is equipped, high-temperature sampling probe is optional for high-temperature environment methane testing.
Q4: Can I export historical CH4 testing data?
A: Built-in data storage function, you can export all records to PC via Mini-USB cable to generate data tables.
