Portable HBr Hydrogen Bromide Single Industrial Gas Leak Detector

Model:HNAG920-HBr

Detection:HBr (Hydrogen Bromide) gas concentration

Detection Principle:High-precision electrochemical gas sensor principle

Detection Range:Optional ranges: 0-20(50)ppm, 0-200(400)ppm, 0-1000(2000)ppm, 0-3000(6000)ppm

WhatsApp: +86 139 2383 1109

Email: sales@en.skyeaglee-detector.com

Inquiry

Previous: Portable pump-assisted diffusion-type hydrogen gas detector

Next: HNAG920-Cl2CO Portable Phosgene Detector 0-10ppm Dual Range

Product Description

HNAG920 Portable HBr Hydrogen Bromide Gas Detector Core Performance & Features

Customizable HBr Detection Ranges & Professional Sensing Structure

This detector uses industrial-grade electrochemical sensors to achieve stable hydrogen bromide detection, with 4 sets of standard measuring ranges for different concentration scenarios. The modular sensor zone and water trap filter can effectively avoid water vapor interference to extend service life.

HBr hydrogen bromide gas monitor full internal structure parts labeled diagram

Stable Sampling Design for Harsh Industrial Environments

The device supports diffusion sampling and pump suction sampling two modes, the top water trap filter can block moisture and dust, adapting to high-humidity, dusty factory working conditions.

Ergonomic Handheld Design with Auto Screen Rotation Function

The product adopts PC+TPU anti-drop housing with back clip for easy waist mounting, the 2.0-inch 320*240 color LCD can rotate 180° automatically, you can read data clearly even when holding the device upside down in narrow operation spaces.

HBr gas detector 180 degrees auto screen rotation function for special working environment viewing

Intuitive One-Key Operation & Multi-Side Audible-Visual Alarm

It has independent function keys for quick parameter setting, 4 surrounding LED alarm lights + built-in buzzer: green light for normal operation, red light + buzzer for high-concentration HBr alarm, to ensure you get alerts in noisy or dim scenarios.

Multi-Mode Wireless Connectivity & Full-Lifecycle Data Management

It breaks single wired limit, supports 4G, WiFi, Bluetooth, LORA 4 wireless protocols: you can remotely check real-time and historical data on mobile phones, or print inspection reports on-site via Bluetooth thermal printer.

HNAG920 HBr hydrogen bromide detector with 4G WiFi Bluetooth LORA multi communication functions

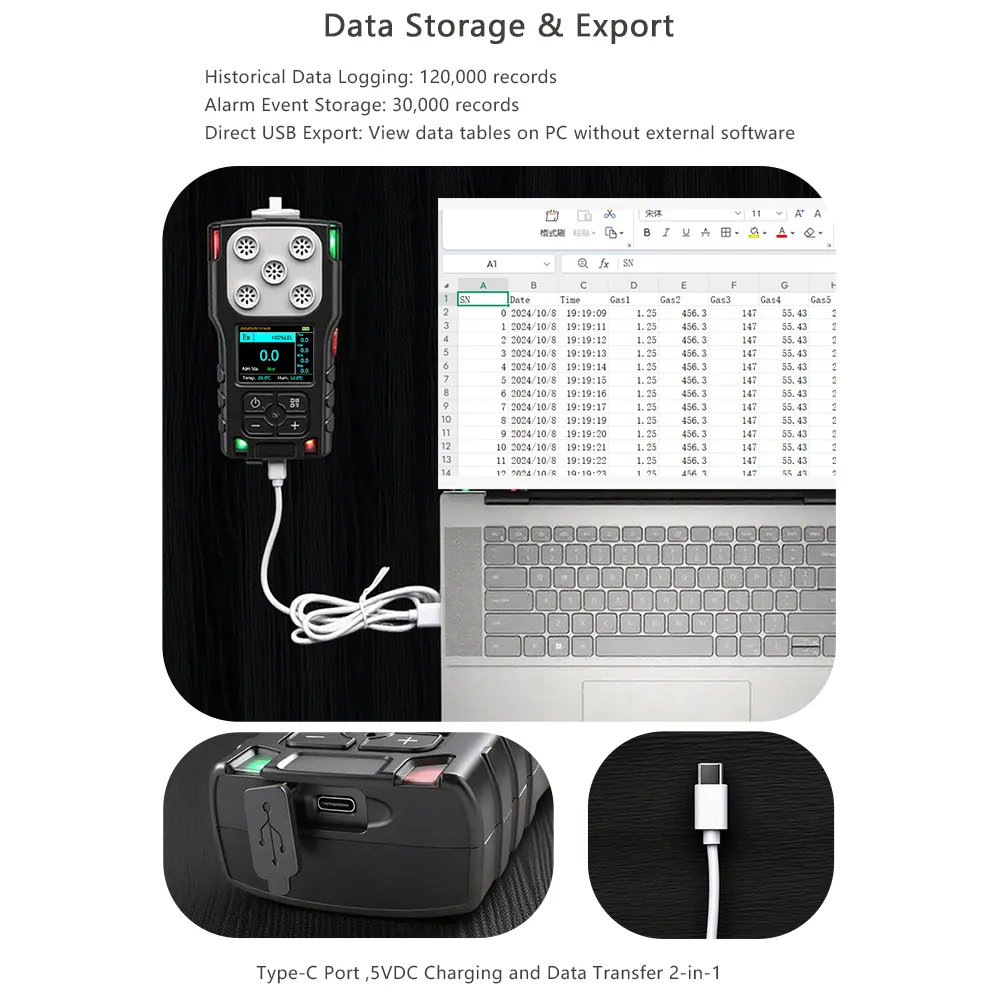

Large-Capacity Data Logging & Plug-and-Play USB Export

The detector can store 120,000 groups of historical records and 30,000 alarm event logs. The Type-C port realizes 5VDC charging + data transfer 2-in-1 function, you can directly export data to PC without installing extra software.

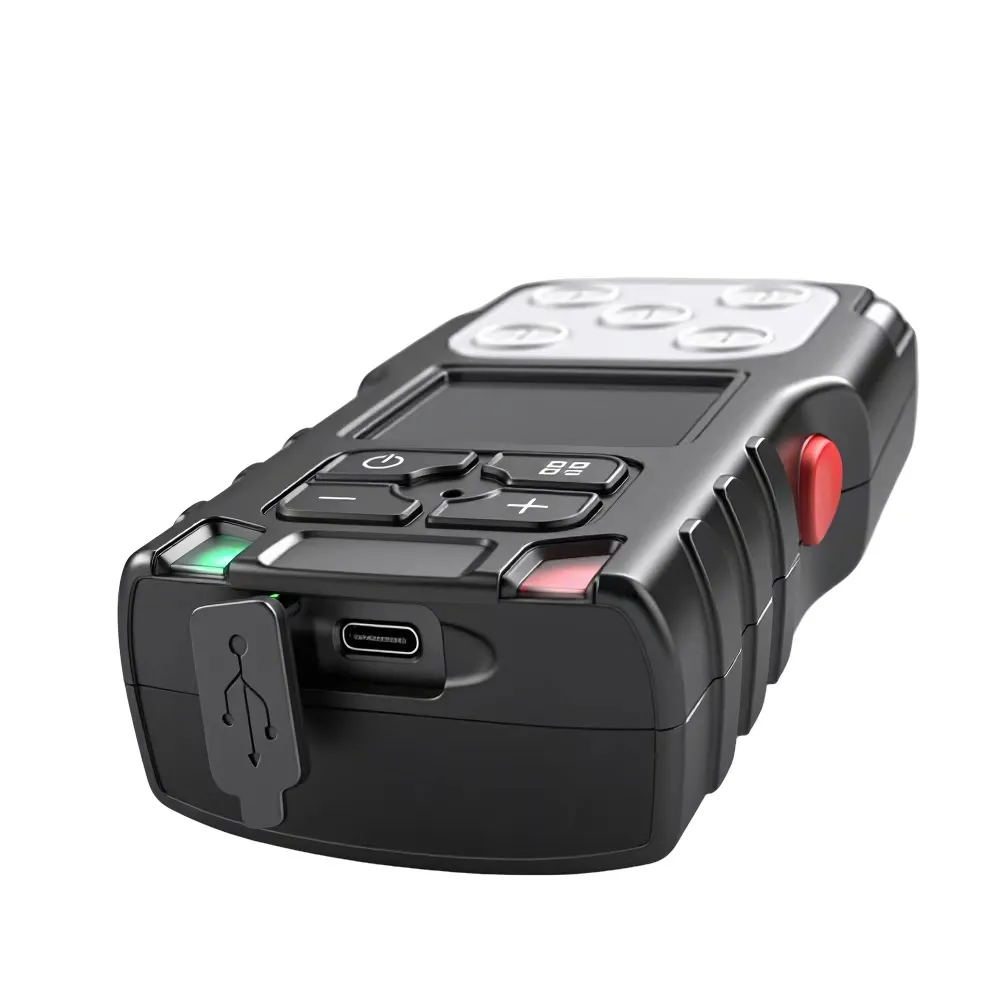

HBr detector Type-C 2-in-1 charging and historical data transfer port close-up

Authoritative Global Safety Certifications & Complete Supporting Kit

The HNAG920-HBr has passed ATEX explosion-proof, SIL safety integrity, CE and RoHS certifications, fully compliant with global industrial hazardous area standards. We also provide customized explosion-proof aluminum carrying case for centralized storage and long-distance transportation.

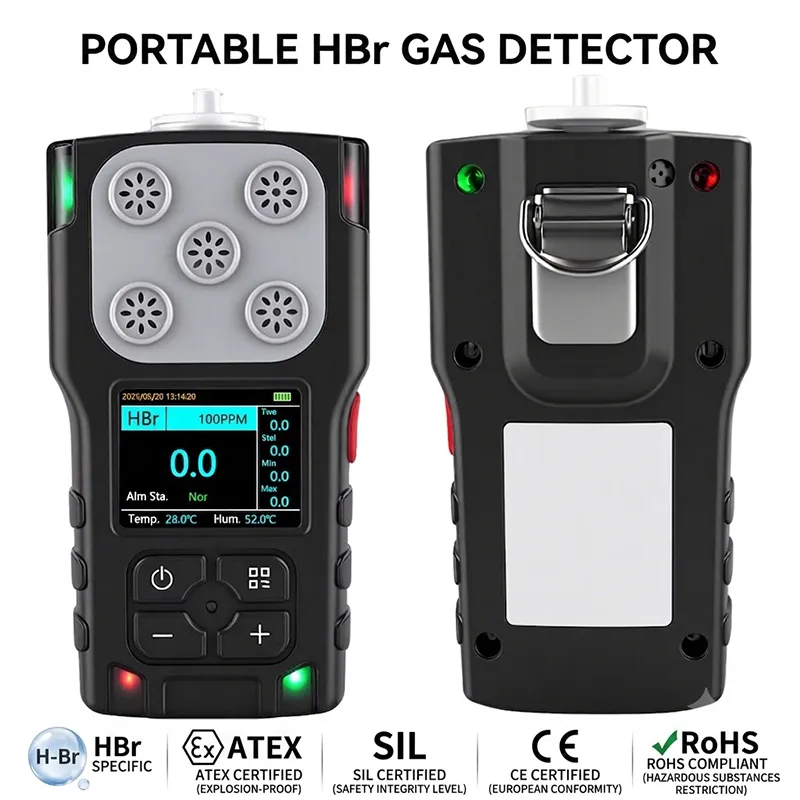

Portable HBr hydrogen bromide gas detector front and back view with ATEX SIL CE RoHS certifications

Wide Applicable Industries for HBr Leak Monitoring

This portable HBr detector is widely used in bromide chemical processing, pharmaceutical synthesis, semiconductor etching, wastewater treatment, laboratory research and other scenarios with hydrogen bromide leakage risks.

Frequently Asked Questions (FAQ) for HNAG920 HBr Gas Detector

Q1: Can I pick different HBr measuring ranges for my order?

A: Yes, we have 4 standard optional ranges: 0-20(50)ppm, 0-200(400)ppm, 0-1000(2000)ppm, 0-3000(6000)ppm, bulk orders can support customized range tuning.

Q2: What wireless ways can I use to transfer detection data?

A: It supports 4G remote transmission, WiFi local networking, Bluetooth on-site printing and LORA long-distance IoT transmission, covering indoor and outdoor monitoring demands.

Q3: Is this detector safe for explosive hazardous workshops?

A: Absolutely, it has official ATEX explosion-proof certification, the whole machine is designed with explosion-proof structure, can work normally in flammable and explosive HBr hazardous areas.

Q4: How to back up the historical detection data?

A: You can export data directly to computer via Type-C USB cable, or sync data to cloud platform through 4G/WiFi for permanent backup.

Q5: How long will the HBr sensor last?

A: The original electrochemical HBr sensor has a service life of 2-3 years under normal use, we provide sensor replacement after-sales service for long-term reuse.
