Pipeline combustible gas detector from China manufacturer
Category: Products Fixed gas detector Pipeline type combustible gas detector
Model: SK/MIC-600-EX
Measurement object: Combustible gas
Product Description
Features of EX Concentration Detector:
■ Intelligent sensor with intrinsically safe technology, supports multi-gas and multi-range detection, and can provide customized products based on user needs. Sensor replacement, offline calibration, and zero self-calibration can be achieved without tools.
■ Intelligent temperature and zero compensation algorithms ensure excellent performance with high selectivity, avoiding interference from other gases on the target gas.
■ Multiple signal outputs including 4-20mA, RS485, and switch signals, compatible with various secondary meters, data acquisition modules, PLC, and DCS systems. Can directly drive solenoid valves, fans, detectors, and other equipment, or drive high-power devices via intermediate relays.
■ Large dot-matrix LCD display with optional Chinese or English operation interface.
■ Supports multiple detection units such as PPM, %LEL, %VOL, and mg/m³.

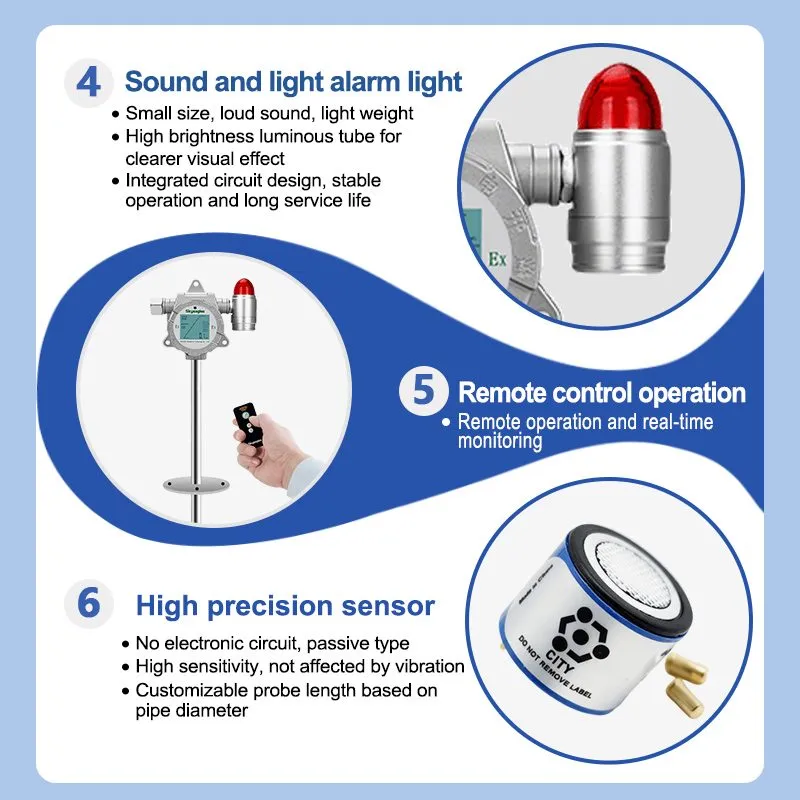

■ Remote controller allows adjustment of alarm points, zero calibration, and target point calibration without opening the cover, enabling single-person maintenance.
■ Built-in button design with restore-to-factory settings function to prevent accidental operation.
■ Local alarm indication with integrated audible and visual detector (optional).
■ Over-range and reverse polarity protection to avoid hazards caused by improper operation.
■ Rich electrical interfaces for user selection.

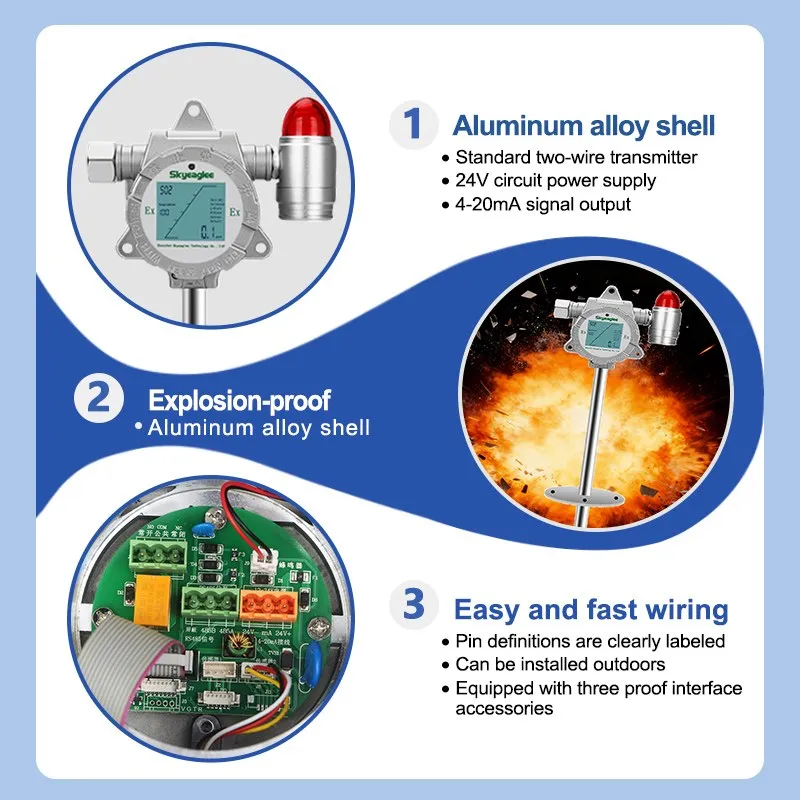

■ Explosion-proof aluminum alloy cast housing, durable and robust.
■ Capable of detecting high boiling point solvents.
■ Explosion-proof verification temperature range: -40°C to 260°C.
■ Explosion-proof certificate rating: ExdIICT6.
■ Explosion-proof certificate number: CNEx20.5006X.
■ Protection level: IP66.
■ Certified by authoritative national and international standards including CNAS, CPA, and SIL safety certifications.
Product parameters of EX concentration detector
Display Method: LCD display
Type: Industrial-grade online explosion-proof
Housing Material: Aluminum alloy (probe rod is stainless steel)
Infrared Remote Control: Supported
Alarm Point Modification: Supported
Restore Factory Settings: Supported

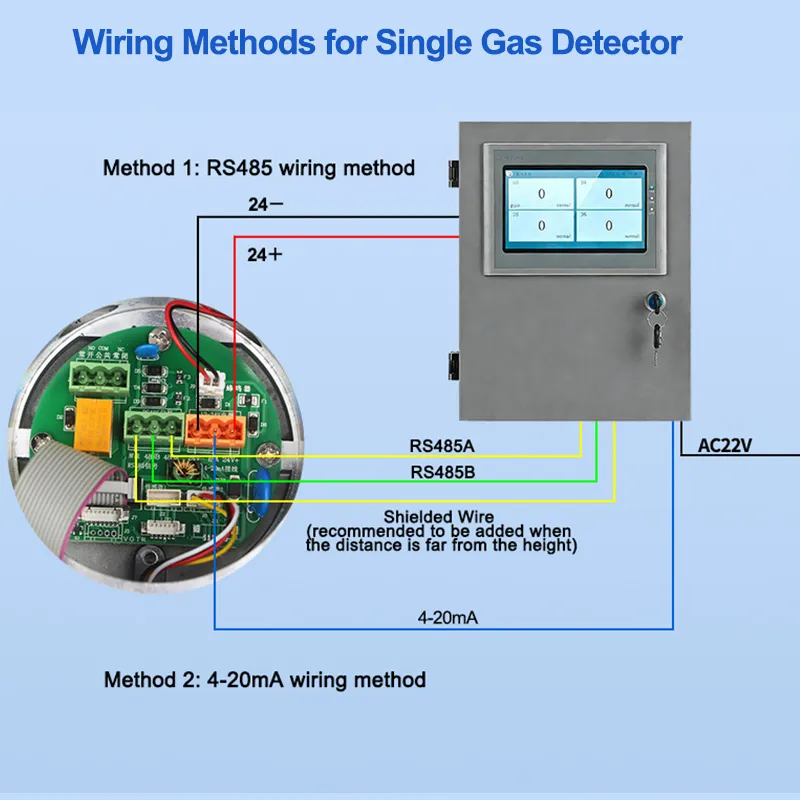

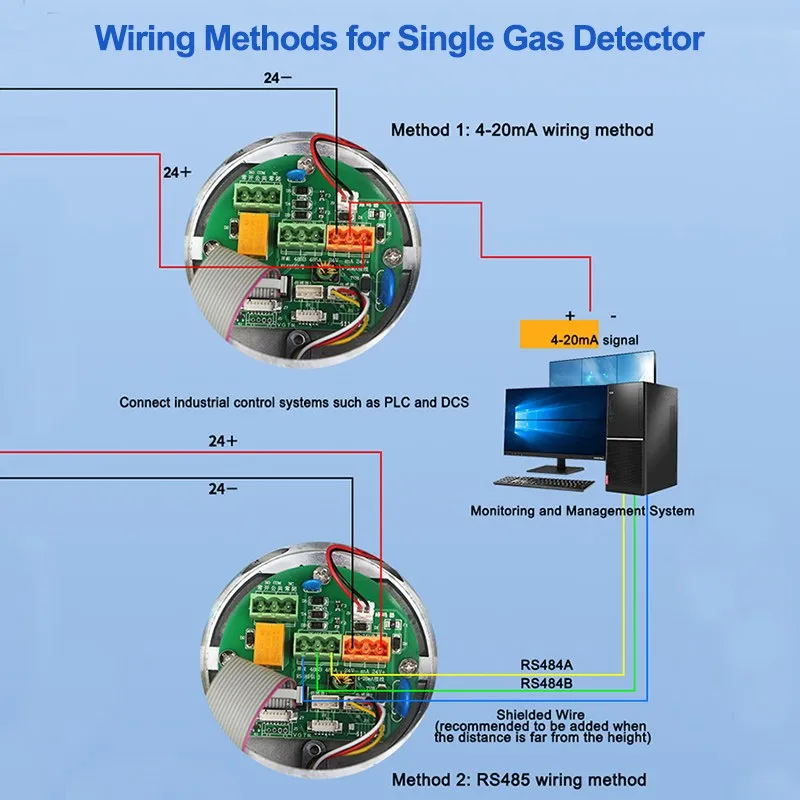

Output Signals:
① 4-20mA signal: Standard 12-bit precision 4-20mA output chip, transmission distance 1000m;
② RS485 signal: Standard MODBUS RTU protocol, transmission distance 1200m;
③ Voltage signal: 0.4-2V, 0-5V, 0-10V output, optional (voltage output and current output are mutually exclusive);
④ Switch signal: Standard 1 set of passive contact relay, capacity 220VAC 3A / 24VDC 3A.

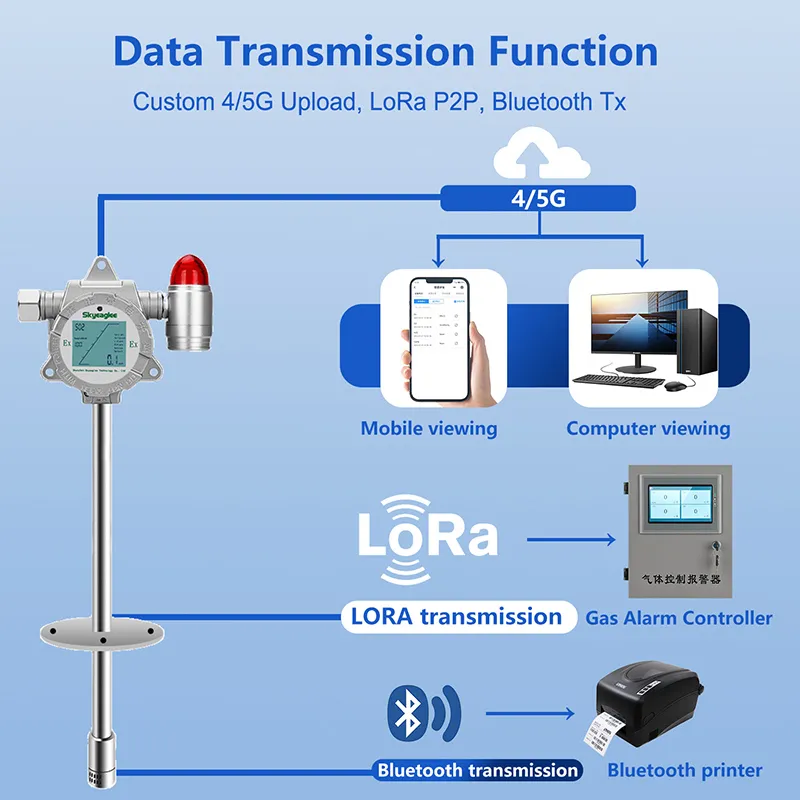

⑤ Wireless signals: GPRS, 4G, WIFI, LORA, ZigBee, etc. (optional)
Receiving Equipment: User computer, control alarm, PLC, DCS, DDC, etc.

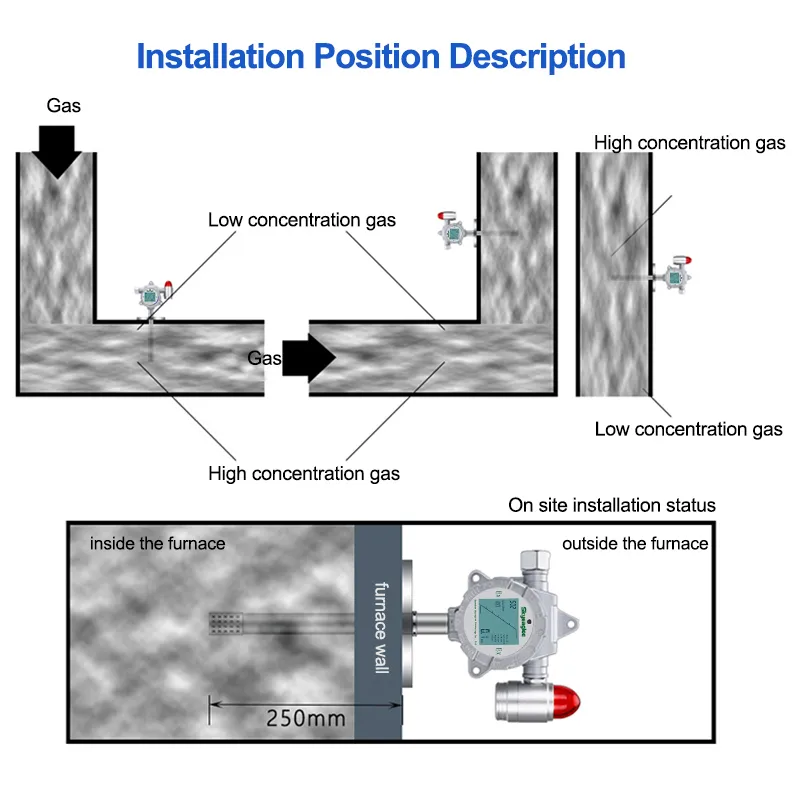

Operation Mode: Direct insertion into furnace, diffusion type
Detection Medium: EX (1-Methyl-2-pyrrolidone). Combustible, toxic, and harmful gases can be customized
Detection Principle: Catalytic combustion
Detection Range: 0-100%LEL (customizable)
Resolution: 0.1%LEL (depends on the range)
Detection Error: ≤±2%F.S
Repeatability: ≤±1%
Linearity Error: ≤±1%
Response Time: T90 ≤ 10S
Operating Voltage: DC24V (12V～30V)
Operating Temperature: Display part: -20℃～50℃, Sensor part: -40℃～+260℃
Operating Humidity: 0-99%RH (non-condensing)
Operating Pressure: 106KPa±20KPa
Sensor Lifespan: 2～3 years (depends on sensor principle and usage environment)
Explosion-proof Type: Both probe transmitter and sensor are flameproof type.
 |
 |
 |
 |
 |
 |
