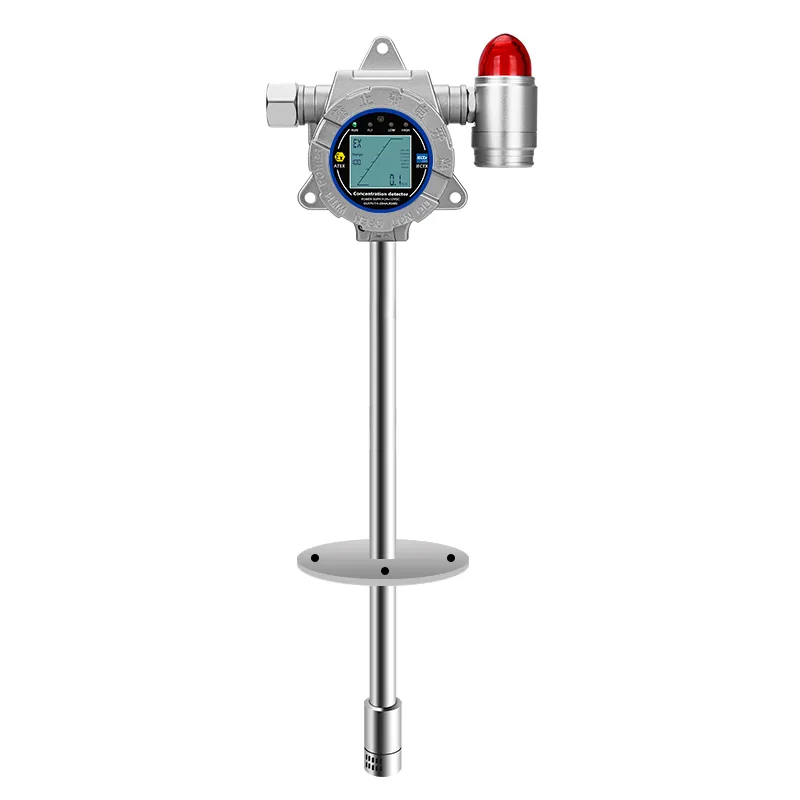

Fixed Insertion Combustible Gas Detector
-
Model: HNAG1000-EX
-
Detection: Combustible Gas (EX / LEL)
-
Detection Principle: Catalytic Combustion
-
Detection range: 0-100% LEL
Product Description
High-Performance Fixed Insertion Combustible Gas Detector
The HNAG1000-EX Fixed Insertion Combustible Gas Detector is meticulously engineered for the continuous, real-time detection of combustible gas (EX) concentrations and leakages directly within industrial pipelines, flues, and enclosed furnaces. By utilizing advanced catalytic combustion technology and a high-speed processing circuit, this insertion-type analyzer delivers an exceptionally fast response speed (T90 < 10s) and high measurement precision, ensuring optimal safety in hazardous locations.
Rugged Stainless Steel Enclosure & Customizable Probe
Designed to withstand extreme industrial conditions, this pipeline gas detector features a heavy-duty stainless steel shell that provides superior resistance to corrosion and mechanical impact. The insertion probe length is highly customizable based on your specific pipe diameter, ensuring that the sensor is perfectly positioned in the gas flow for accurate readings. The entire unit boasts a strict explosion-proof design, making it fully certified for highly combustible and volatile environments.
High-Precision Sensor & Integrated Alarm System
The device is equipped with a high-precision, passive-type sensor that remains highly sensitive and unaffected by pipeline vibrations. For immediate on-site alerts, the detector features an integrated sound and light alarm light. Its high-brightness luminous tube ensures clear visual warnings even in dusty or dark facilities. Furthermore, the standard infrared remote control allows operators to perform parameter adjustments and real-time monitoring without opening the stainless steel enclosure, ensuring maximum safety.
Flexible Pipeline Installation & Wiring

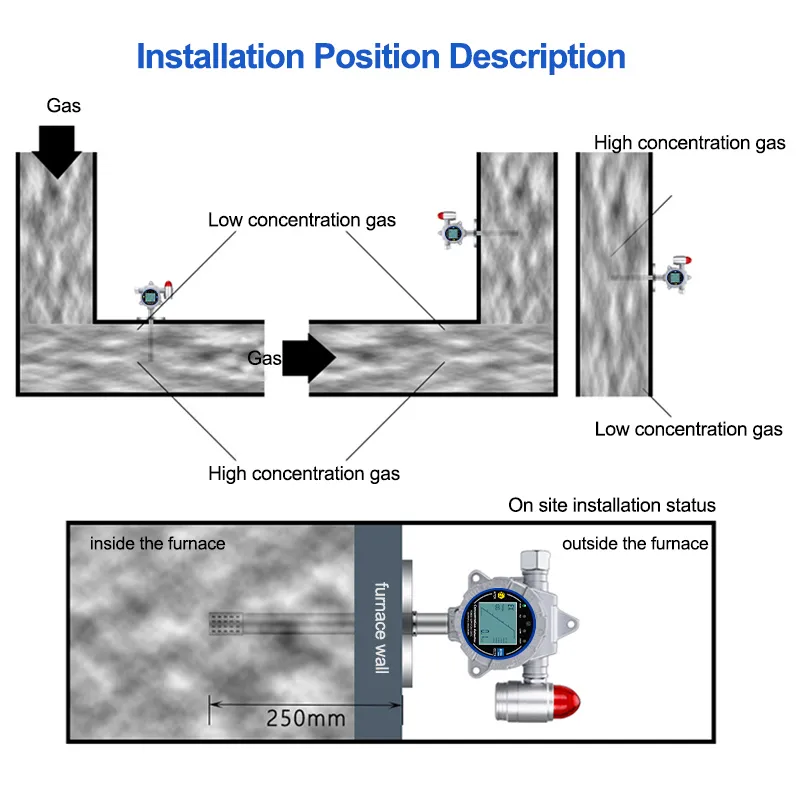

The insertion detector is highly adaptable for various on-site installation statuses, whether mounted directly on a furnace wall or along horizontal/vertical pipelines.

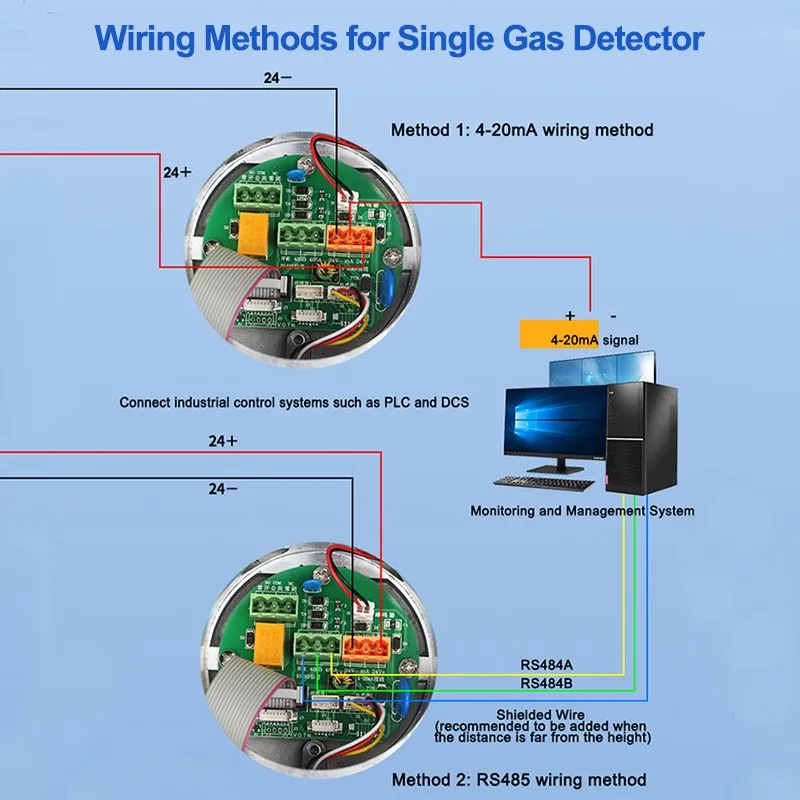

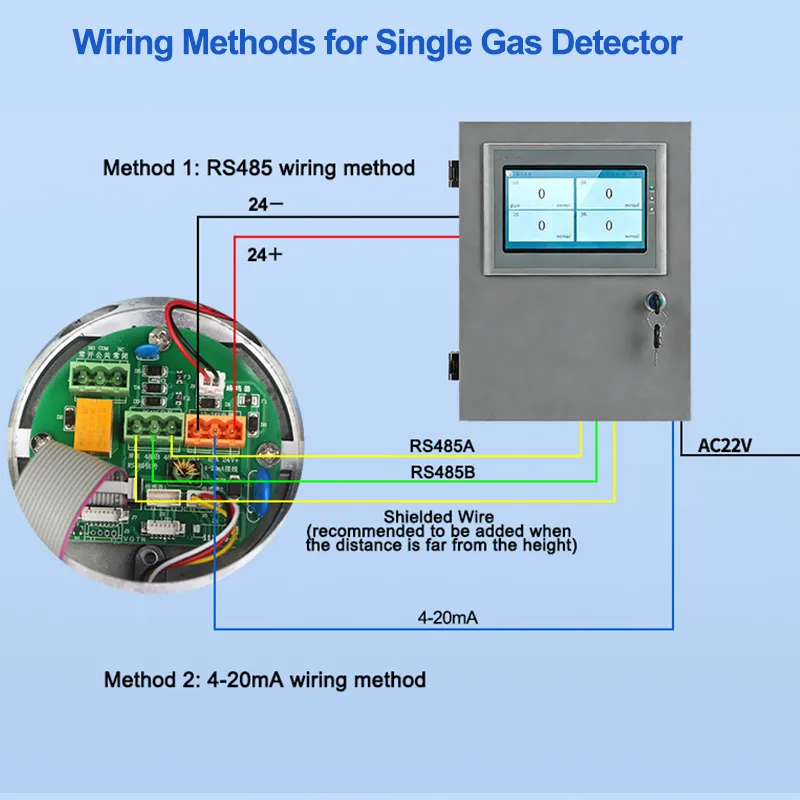

The internal circuit provides clearly labeled pin definitions for easy and fast wiring. It supports standard RS485 and 4-20mA signal outputs, perfectly integrating with PLC, DCS, and other monitoring systems.

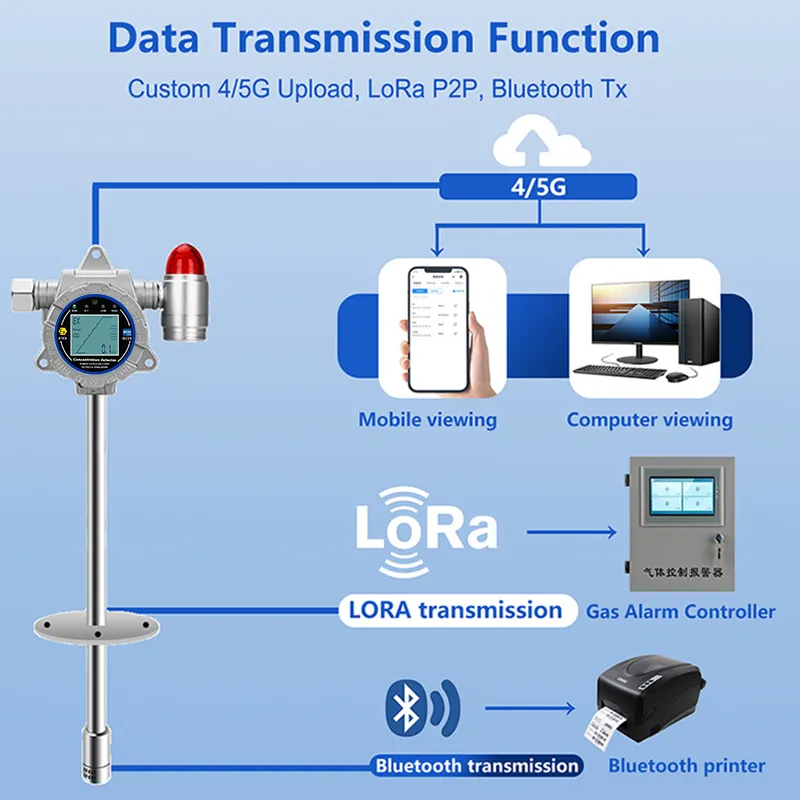

Advanced Wireless Data Transmission
To meet the demands of modern smart factories, the detector offers optional wireless signal outputs. It can seamlessly transmit real-time data to mobile devices, computer viewing platforms, and gas alarm controllers via Custom 4/5G Upload, LoRa P2P, or Bluetooth Tx.
Frequently Asked Questions (FAQ)
Q: What is the housing material of this insertion gas detector?
A: The device is constructed with a rugged stainless steel shell, ensuring maximum durability, corrosion resistance, and explosion-proof safety in harsh industrial environments.
Q: Can the length of the insertion probe be adjusted?
A: Yes, the probe length is fully customizable. We manufacture the probe based on your specific pipeline diameter to ensure accurate gas sampling within the flow.
Q: How does the detector alert workers of a gas leak?
A: It features a built-in sound and light alarm with a high-brightness luminous tube. Additionally, it outputs RS485 and 4-20mA signals to trigger remote alarms in your control room.
Q: Does it support remote wireless monitoring?
A: Absolutely. The detector supports extensive wireless transmission options, including 4G/5G, LoRa, and Bluetooth, allowing you to monitor real-time gas concentrations from your mobile phone or PC.
