Fixed Oxygen O2 Gas Detector 316L Stainless Steel
Model: HNAG1000
Detection: Oxygen (O2)
Detection Principle: Electrochemical
Detection range: 0-30%vol, 0-100%vol, 0-10000ppm
Product Description
High-Precision Fixed Oxygen Gas Detector for Industrial Safety
The online combustible gas concentration detector HNAG1000 is suitable for real-time and accurate detection of gas concentration and leakage in various environments. Engineered specifically for oxygen depletion and enrichment monitoring, this Skyeaglee fixed O2 gas detector is housed in a rugged 316L stainless steel enclosure, ensuring maximum durability and corrosion resistance.
Advanced Electrochemical Sensor Technology
Built for uncompromising accuracy, the device utilizes an advanced electrochemical sensor combined with imported microcontroller technology. It has fast response speed and measurement accuracy. High, stability and repeatability.
Intuitive Interface and Intelligent Calibration
The 2.5-inch high-definition color screen (TF) displays real-time concentration, temperature, humidity. This clear display allows operators to quickly assess environmental safety at a glance.
The system automatically tracks zero point to prevent drift, temperature compensation, multi-level calibration, and can comply with national standards and local and provincial metrology bureau standards in various regions. Furthermore, the standard infrared remote control enables operation without opening the cover in dangerous situations.

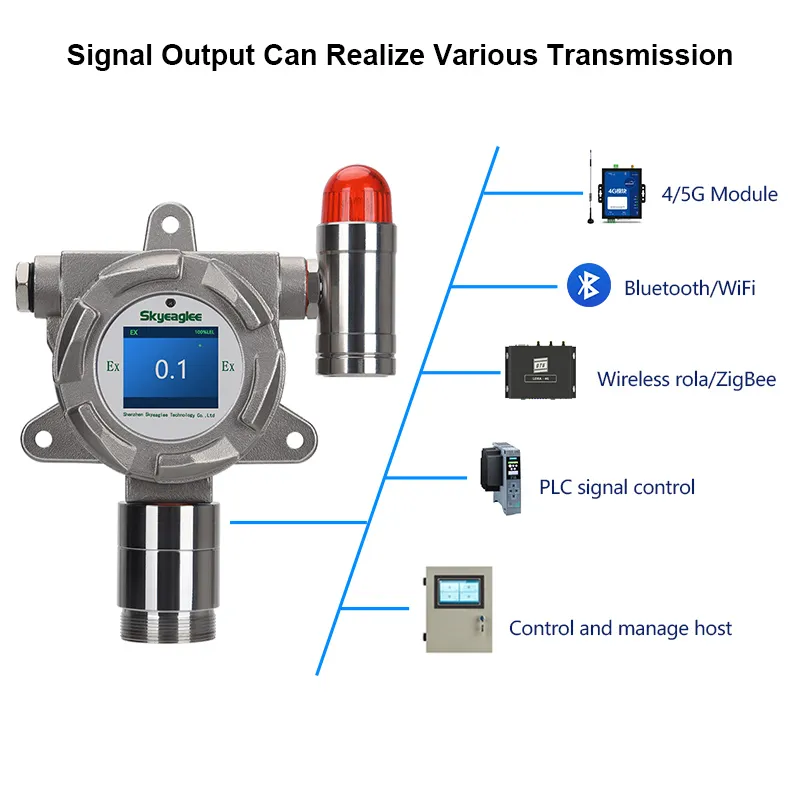

Versatile Signal Output and Wiring Design
Integration into your existing safety infrastructure is seamless. Standard bus RS485 and 4~20mA standard signals are output simultaneously, 1 set of relay switching output, optional frequency output 200-1000Hz, 1~5V output, wireless transmission (10-50 kilometers or unlimited distance).
Professional Installation and Application
A defining feature of the Skyeaglee system is our professional engineering approach. The installation setup is designed to be completely clean, meaning it does not use visible wires. This eliminates the risk of accidental cable damage from heavy machinery or environmental wear. Options include wall-mounted, pipe, ceiling, bracket installation.
The CH4plosion-proof wiring method is suitable for various dangerous places, and is compatible with various control alarms, PLC, DCS and other control systems. Key application scenarios include petroleum and petrochemical, chemical plants, medical research, pharmaceutical production workshops, environmental monitoring, underground gas pipeline maintenance, and indoor air quality testing.
Frequently Asked Questions (FAQ)
What is the response and warm-up time for the O2 detector?
The Warm-up Time is 10S, and the Response Time is T90<10S.
Is the stainless steel housing waterproof?
Yes, the detector holds an IP Grade of IP66 Protect against splashing water and short periods of rain.
What is the lifespan of the equipment?
The Service Life is 3-5years, and it comes supported by a 1year Warranty.
