Case Study: LEL Gas Monitoring in Harsh Industrial Environments





The Application Scenario: Extreme Exhaust and Flue Gas

In specialized industrial sites—such as waste incineration plants, industrial boiler flues, high-temperature reactor exhausts, and biogas engineering facilities—the working conditions are exceptionally brutal. The gases in these pipelines are characterized by high temperatures, extreme moisture, heavy dust loads, and strong corrosiveness. Standard detectors would fail instantly here. This Gas Conditioning System is installed directly alongside these extreme process pipelines, acting as a robust frontline shield to extract and prepare the gas samples.



Why is a Sample Conditioning System (SCS) Required?

Directly injecting raw industrial exhaust into a delicate sensor will cause immediate hardware failure and critical safety blind spots. Deploying a comprehensive Sample Conditioning System (SCS) solves this through a multi-step physical treatment process:

1. Sensor Protection Through Cooling and Dehumidification

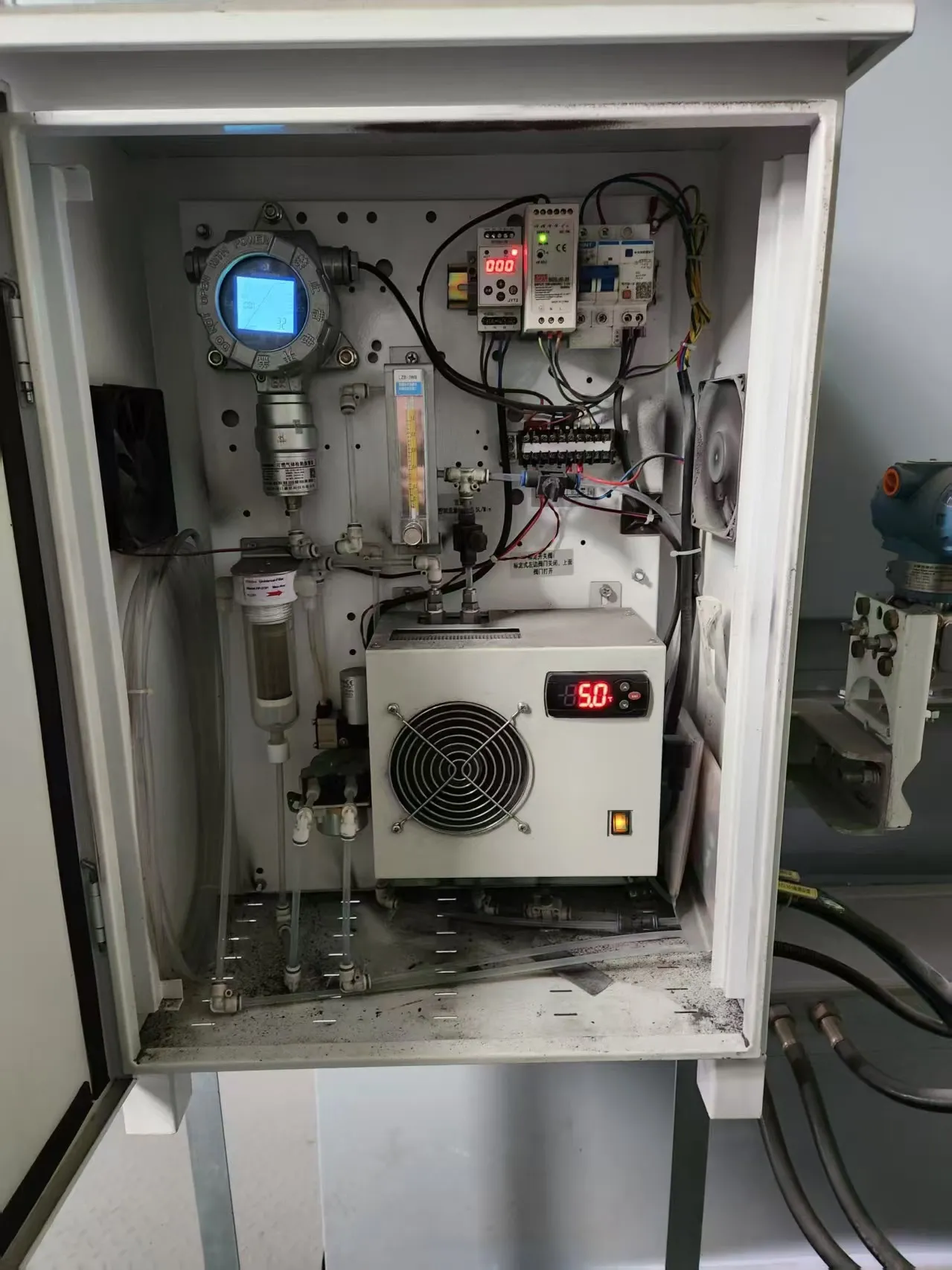

As seen inside the cabinet, the system utilizes a powerful electronic condenser (displaying a -5.0 temperature reading), multi-stage particulate filters, and a rotor flowmeter. This hardware actively cools the boiling exhaust, strips away heavy moisture, filters out clogging dust, and stabilizes the pressure before the sample ever touches the Harsh Environment Gas Detector.

2. Accurate Combustible Gas (LEL) Explosion Prevention

The ultimate goal of extracting and treating this harsh gas is to secure the facility from catastrophic blasts. By conditioning the sample perfectly, the core LEL Gas Analyzer System (mounted on the top left) can accurately and continuously measure the Lower Explosive Limit (LEL) of the combustible gases within the process pipes. This guarantees that if volatile gases spike to dangerous levels, the control room receives real-time, uninterrupted alerts to prevent industrial explosions.

Case Study: LEL Gas Monitoring in Harsh Industrial Environments





The Application Scenario: Extreme Exhaust and Flue Gas

In specialized industrial sites—such as waste incineration plants, industrial boiler flues, high-temperature reactor exhausts, and biogas engineering facilities—the working conditions are exceptionally brutal. The gases in these pipelines are characterized by high temperatures, extreme moisture, heavy dust loads, and strong corrosiveness. Standard detectors would fail instantly here. This Gas Conditioning System is installed directly alongside these extreme process pipelines, acting as a robust frontline shield to extract and prepare the gas samples.



Why is a Sample Conditioning System (SCS) Required?

Directly injecting raw industrial exhaust into a delicate sensor will cause immediate hardware failure and critical safety blind spots. Deploying a comprehensive Sample Conditioning System (SCS) solves this through a multi-step physical treatment process:

1. Sensor Protection Through Cooling and Dehumidification

As seen inside the cabinet, the system utilizes a powerful electronic condenser (displaying a -5.0 temperature reading), multi-stage particulate filters, and a rotor flowmeter. This hardware actively cools the boiling exhaust, strips away heavy moisture, filters out clogging dust, and stabilizes the pressure before the sample ever touches the Harsh Environment Gas Detector.

2. Accurate Combustible Gas (LEL) Explosion Prevention

The ultimate goal of extracting and treating this harsh gas is to secure the facility from catastrophic blasts. By conditioning the sample perfectly, the core LEL Gas Analyzer System (mounted on the top left) can accurately and continuously measure the Lower Explosive Limit (LEL) of the combustible gases within the process pipes. This guarantees that if volatile gases spike to dangerous levels, the control room receives real-time, uninterrupted alerts to prevent industrial explosions.
