Case Study: Confined Space Continuous Gas Monitor in Railway Construction
The Challenge: Extreme Confined Space Hazards
In major infrastructure projects like the Shenshan High-speed Railway, underground tunnel excavation creates severe confined space hazards. The presence of heavy machinery, such as generators and compactors, combined with poor ventilation, requires a highly reliable fixed multi-gas detector. It must continuously monitor both toxic gases released from the ground and exhaust emissions from machines to ensure worker safety.

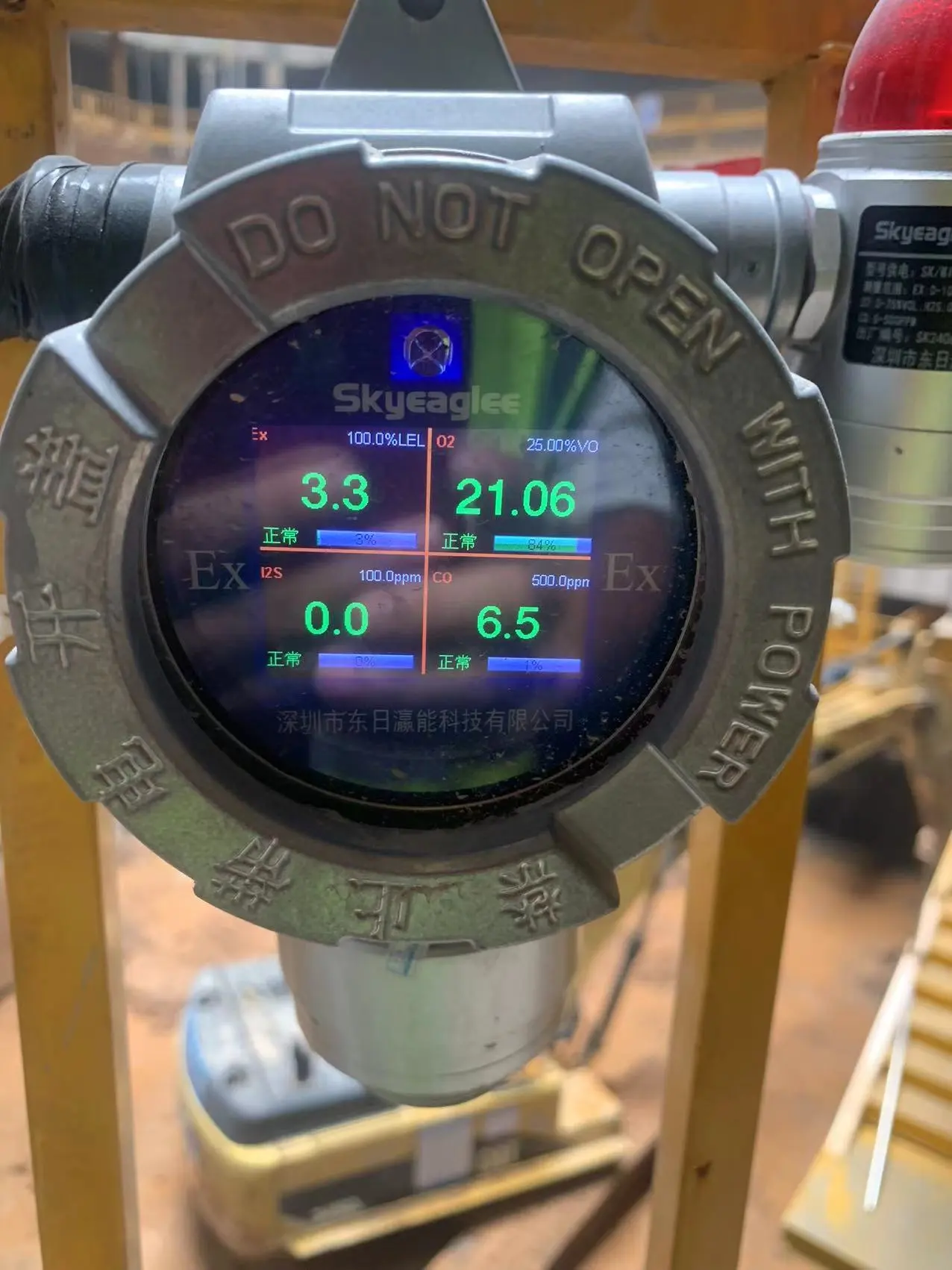

Real-Time Monitoring Data for Ex, O2, H2S, and CO
Our industrial-grade device effectively tracks four critical gas levels simultaneously. Based on the real-time site data shown on the device screen, all indicators are currently in the normal and safe range:
Ex (Combustible Gas)
Current Value: 3.3 %LEL (Range: 100.0 %LEL). This effectively tracks explosive gases like methane and coal gas, preventing them from reaching the lower explosive limit and causing accidents.
O2 (Oxygen)
Current Value: 21.06 %VOL (Range: 25.00 %VOL). This reading confirms a standard fresh air level. Monitoring oxygen is crucial to prevent hypoxia and asphyxiation for workers in enclosed underground environments.
H2S (Hydrogen Sulfide)
Current Value: 0.0 ppm (Range: 100.0 ppm). H2S is a highly toxic gas often released from deep soil or mud during excavation. The zero reading indicates a safe zone with no toxic gas accumulation.
CO (Carbon Monoxide)
Current Value: 6.5 ppm (Range: 500.0 ppm). A trace amount is detected, which is very common on construction sites. This typically originates from the incomplete combustion exhausts of fuel-powered machinery running in the tunnel.
Why Choose Our Industrial Gas Detector
As a professional industrial gas detector manufacturer, we prioritize durability and engineering safety. The device features a heavy-duty explosion-proof aluminum alloy housing built for high-dust, high-vibration environments. Furthermore, our professional installation standard ensures a clean setup with no visible wires exposed. This strictly compliant design significantly reduces the risk of accidental cable damage during heavy construction, providing true peace of mind for safety managers.
Case Study: Confined Space Continuous Gas Monitor in Railway Construction
The Challenge: Extreme Confined Space Hazards
In major infrastructure projects like the Shenshan High-speed Railway, underground tunnel excavation creates severe confined space hazards. The presence of heavy machinery, such as generators and compactors, combined with poor ventilation, requires a highly reliable fixed multi-gas detector. It must continuously monitor both toxic gases released from the ground and exhaust emissions from machines to ensure worker safety.
Real-Time Monitoring Data for Ex, O2, H2S, and CO
Our industrial-grade device effectively tracks four critical gas levels simultaneously. Based on the real-time site data shown on the device screen, all indicators are currently in the normal and safe range:
Ex (Combustible Gas)
Current Value: 3.3 %LEL (Range: 100.0 %LEL). This effectively tracks explosive gases like methane and coal gas, preventing them from reaching the lower explosive limit and causing accidents.
O2 (Oxygen)
Current Value: 21.06 %VOL (Range: 25.00 %VOL). This reading confirms a standard fresh air level. Monitoring oxygen is crucial to prevent hypoxia and asphyxiation for workers in enclosed underground environments.
H2S (Hydrogen Sulfide)
Current Value: 0.0 ppm (Range: 100.0 ppm). H2S is a highly toxic gas often released from deep soil or mud during excavation. The zero reading indicates a safe zone with no toxic gas accumulation.
CO (Carbon Monoxide)
Current Value: 6.5 ppm (Range: 500.0 ppm). A trace amount is detected, which is very common on construction sites. This typically originates from the incomplete combustion exhausts of fuel-powered machinery running in the tunnel.
Why Choose Our Industrial Gas Detector
As a professional industrial gas detector manufacturer, we prioritize durability and engineering safety. The device features a heavy-duty explosion-proof aluminum alloy housing built for high-dust, high-vibration environments. Furthermore, our professional installation standard ensures a clean setup with no visible wires exposed. This strictly compliant design significantly reduces the risk of accidental cable damage during heavy construction, providing true peace of mind for safety managers.
